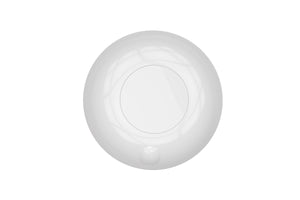

Tempo Disc™ Wireless Temperature / Thermometer Sensor Beacon and Data Logger
Tempo Disc™ Wireless Temperature Sensor Beacon and Data Logger
Bluetooth compatible sensor beacon and data logger measuring and logging temperature. Ultra small form with a battery (replaceable) life of approximately 1 year in ordinary use. Monitors and logs temperature continously transmitting the current value and storing 20,000 data points for downloading by iOS and Android smartphones and tablets. Incorporates a highly accurate temperature sensor from Silicon Labs
Introduction
Looking for a small, accurate and cost effective logging solution? Look no further than the Tempo Disc™ Wireless Temperature Logger and Sensor Beacon! From your iOS or Android Bluetooth enabled smartphone you can see current readings, whether thresholds have been breached, running metrics such as averages, highs and lows. You can also download logged data quickly and easily to either view on your smartphone or export for report generation, archiving or further analysis.
Reliability
You can rest easy knowing Tempo Disc™ is made from the highest quality components. such as Nordic Semiconductor’s multi-award winning Bluetooth System on Chip, Silicon Labs accurate and reliable SI7020 temperature sensor and a Johannson ceramic antenna for long range and performance.
Easy
No complications, no ongoing fees, no cloud account required. You have the simplicity and convenience of using your iOS and Android smartphone to see current readings and statistics and then downloading and analysing logged data. From your smartphone you can export the data.CSV format for record keeping, report generation and further analysis.
Internet Capable
Should you want it, you can quickly and easily add internet capability to your Tempo Disc™ using our Tempo Anywhere™ Gateway and a Blue Maestro Cloud account. This Gateway routes the Tempo Disc data to the Cloud, where it can be stored, alerts generated and pushed to you by email/SMS text and the data viewed anywhere.
Temperature Range:
-30ºC to +75ºC (-22ºF to +167ºF)
Memory Capacity:
20,000 data points on a rolling FIFO basis
Airplane Mode:
Yes
Wireless Range:
Up to 75m/225 feet line of sight
Accessories (Optional Extras):
Silicon holder for mounting. Tempo Anywhere™ for internet connectivity. Calibration certificate
APIs and SDK for custom app development:
Yes
Battery:
CR2032 Coin Cell (Changeable)
Battery Life:
Approximately 1 year with continuous Bluetooth compatible transmission. Approximately 2 years in logging mode and intermittent Bluetooth compatible transmission
Regulatory:
CE, FCC and RoHS
Hardware Features:
Polycarbonate enclosure with soft touch TPE on/off button and LED indicator
Temperature and Dew Point Accuracy:
Typical 0.3ºC (0.5ºF) with maximum 0.4ºC (0.7ºF) at -10ºC to +75ºC (+14ºF to +167ºF). Resolution of 0.1ºC. Drift less than 0.01ºC per annum
Temperature Response Time:
Time to 63% of final value in response to step change 3.8 minutes. Actual response time will vary dependant on system thermal mass and air flow
Logging Interval:
User defined from 1 minute to 18 hours
Real Time Clock:
Yes. Drift of approximately 60 seconds every 30 days
Advanced Security Features:
Pin protection & button disablement providing world class device integrity
Compatibility:
iOS 7 and above and Android 5 and above with Bluetooth 4.3 and above
Report Generation Templates:
Yes
Warranty
6 months
Country of Manufacture
United Kingdom/United States
Tempo Plus 2 App Manual
User Manual for the iOS and Android app for Tempo Disc Wireless Temperature Sensor
