The IVF On Demand OnLine Filter Provides protection for 6 months.

Filter Specifications and Certifications

Purifies CO2 and N2 gasses
VOC Capacity: 1400 (mg) tested with Isopropyl Alcohol, ethanol, methanol, acetone, Toluene, Xylenes, 2-butanone, styrene acrolein, benzene, ethyl acetate, 111-trichloroethane, n-Hexane, Methylene chloride, propionaldehyde, butyraldehyde, hexanaldehyde
2 filters: Activated carbon and HEPA (1 Micron)

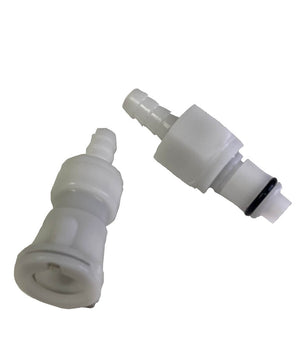

Fitting connections: Male/Female :1/4” Flow cut-off valve quick coupling with metal latch (2QV/2QV)
Sterilized
Regulatory: Certified by CE class 1, meets 93/42/EEC Medical Device Standards
Constructed with polypropylene resins and filtration media with 21 CFR Part 177 and USP Class VI biological test for plastic.
Maximum operating conditions: 60 ^o C (140^oF), 5.5 bar (80 psi)

Main application and target market

Materials of Construction: (Standard Construction)	Media: Fibrous Activated Carbon and HEPA media Media Supports: Polypropylene Cage, Core, End Caps: Polypropylene, Silicone, Thermal End Cap
Fitting Connections:	Male/Female : 1/4” Flow cut-off valve quick coupling with metal latch (2QV/2QV)
Nominal Dimension:	Length: 1.5” (38 mm), 2.5” (63 mm), 5” (127 mm), 7.5” (190 mm), and 10” (254 mm) Diameter: 2.8” (73 mm)
Effective Purification Volume: (Single Layer/PP Construction)	1.5”: 0.65 grams 2.5”: 1.3 grams 5.0”: 2.7 grams 7.5”: 4.0 grams 10”: 5.2 grams
Operating Conditions:	Maximum Operating Pressure: Liquid: 5.5 bar (80 psi) at 72 °F/22 °C Gas: 4.1 bar (60 psi) at 72 °F/22 °C Maximum Forward Differential Pressure: 4.1 bar (60 psi) at 72 °F/22 °C Maximum Reverse Differential Pressure: 2.1 bar (30 psi) at 72 °F/22 °C Minimum Burst Pressure: 8.3 bar (120 psi) at 72 °F/22 °C Maximum Operating Temperature: 140°F/60°C
