Stand Alone Oxygen Deficiency Monitor

Low-profile design equipped with a unique tri-color display, which changes color as oxygen levels reach each alarm level.

Features

Operates with or without a controller
Range of 0-25.0 % volume with 0.1% increments
Tri-color visual alarm display
2 preset alarms; Green=Normal, Yellow=Alarm 1, Red=Alarm 2
Large easy to read digital display
Three power options: 115 VAC, 24 VDC, or 2 AA alkaline
Operates up to 1 year on one set of AA alkaline batteries
Pressure compensation eliminates false alarms caused by pressure change
Remote mount sensor cable available

The OX-600 is an indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. It’s sleek, low-profile design is equipped with a unique tri-color display, which changes color as oxygen levels reach each alarm level. The OX-600 has 2 preset alarms, and comes ready to operate with a simple wall mount bracket and 10 foot power cord. It is capable of operating with three different power options; 115 VAC, 24 VDC or alkaline batteries. If Oxygen is present, the user is notified by an audible alarm tone and the multicolored LED digital display.

The OX-600 uses a fast responding low-cost plug-in style galvanic cell sensor. This long life sensor is field-replaceable with no special tools required. The sensor can also be remotely mounted with an optional remote sensor cable.

Extender cable with remote box available in different lengths (3, 5, 10, or 20 meters).

Please Note: This item is recalibrated by the manufacturer before it ships. Orders generally ship in 24-36 hours.

Detection Principle	Galvanic cell
Gas Detected	Oxygen (O2)
Detection Range	0 ~ 25 vol%
Display Resolution	0.1 vol%
Sampling Method	Diffusion or remote sampling method with optional extender cable
Indication Accuracy*	Within ±0.7 vol%
Response Time*	90% Response within 30 seconds
Alarm Delay Time*	Within 5 seconds, after detecting 10 ~ 11 vol% gas at Oxygen deficiency alarm (18 vol% alarm).
Alarm Accuracy*	Within ±1 vol% of preset alarms
Alarm Levels	Two preset alarms (L-LL), alarm 1 = 19.0% vol, alarm 2 = 18.0% vol (other settings available)
Display of Alarm	1st gas alarm: gas concentration reading blinks or orange light, flashing AL1 light or orange light, buzzer 2nd gas alarm: gas concentration reading blinks or red light, flashing AL2 light or red light, buzzer
Alarm Method	Latching or Non-latching
Alarm Contact	Dry contact, Form A or Form B, Form A standard Factory Setting, normally open (closed in ALARM)
Display	Digital LCD (3 digits, 7 segments / Green, Orange, Red) (For Alkaline battery version, the back light will be OFF during normal operation)
Trouble Alarm / Self-Diagnosis	System trouble / sensor connection trouble
Display of Trouble Alarm	Buzzer / content indication (flashing of red error message)
Trouble Alarm Method	Non-latching or Latching
Contact Capacity	125VAC, 1A or 30VDC, 1A (Resistive load)
Output Signal	4 ~ 20mA (Non-isolated, Resistive load under 300Ω) or 0DC-1V (Non-isolated) *only for 0DC-1V Alkaline battery specification
Extender Cable	Extender cable with remote box (3m, 5m, 10m or 20m lengths available)
Power Sources	120VAC±10%, 50/60Hz, 24VDC±10%, or AA alkaline battery (2 each)
Power Consumption	AC specification: MAX 3.5VA, DC specification: MAX 2W
Continuous Operation (for Alkaline Battery version)	1 year (no alarm, no indication)
Initial Clear	About 25 seconds
Operating Temperature	0 ~ 104°F (no sudden change)
Operating Humidity	Below 90%RH (non-condensing)
Mounting Equipment	Wall mounting, sensor integrate type or remote type
Dimension	Body: approx. 3.15”(W) x 4.72”(H) x 1.2”(D) (80(W) x 120(H) x 35.5(D)mm) Remote sensor: approx. 1.57”(W) x 3.78”(H) x 1.2”(D) 40(W) x 96(H) x 35.5(D)mm (exclude the protrusion)
Weight	AC specification: approx. 7.05 oz (200g), DC specification: approx. 6.34 oz (180g), Alkaline battery specification: approx. 8.11 oz (230g) Remote sensor: approx. 1.94 oz (55g) (exclude the cable)
Warranty	One year materials and workmanship

Manual

Specifications:

Mfr. No. RKI-OX-600-115VAC	Indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. 115 VAC
Mfr. No. RKI-OX-600-2AA	Indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. 2 AA batteries
Mfr. No. RKI-OX-600-115VAC-S	Indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. 115 VAC. 3 meter sensor cable installed.
Mfr. No. RKI-OX-600-2AA-S	Indoor, standalone monitor that detects Oxygen (O2) with a range of 0-25.0 % volume with 0.1% increments. 2 AA batteries. 3 meter sensor cable installed

Contact

Cryopreservation Alarms

CryoSentinel® - Thermographic Risk Mitigation & Early Warning System For Cryogenic Storage Vacuum Failures - QUOTE

CryoSentinel® - Thermographic Risk Mitigation & Early Warning System For Cryogenic Storage Vacuum Failures - QUOTE

TraceableLIVE® Liquid Nitrogen Datalogging Traceable Thermometer

TraceableLIVE® Liquid Nitrogen Datalogging Traceable Thermometer

Stand Alone Oxygen Deficiency Monitor

Stand Alone Oxygen Deficiency Monitor

Bat-1B Level Alarm 9V for MVE Tanks

Bat-1B Level Alarm 9V for MVE Tanks

PharmaWatch

PharmaWatch

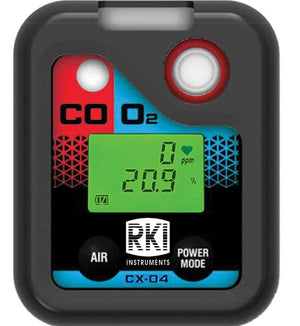

O4 Series - Single Gas Personal Monitors
