Precision SwimGrid™ Reusable Analysis Chamber
FORMERLY KNOWN AS:
CRY-SCOPE-10UM-GRID

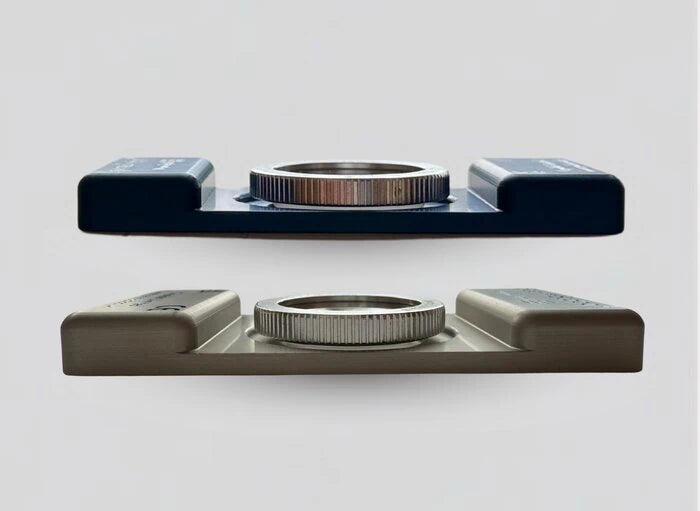

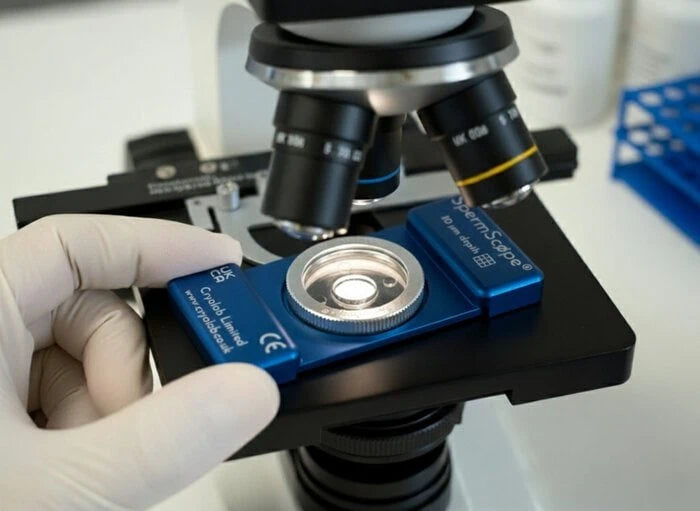

The Precision SwimGrid is a reusable manual analysis chamber designed for trained laboratory professionals performing manual cell counts under a light microscope. Built from a precision-machined aluminum body with a sealed glass center, it carries a laser-engraved 10×10 counting grid for consistent, repeatable field observation of spermatozoa and other cell types.
An ultra-thin crystal cover slide sits close to the sample to minimize surface tension and allow direct illumination from the microscope condenser, producing sharper images with reduced optical distortion. Each chamber is individually serialized for traceability, making it well suited to andrology, IVF, veterinary, research, biobank, and educational laboratories.
Available in a 10 µm depth for human laboratories.
Key Features
- Reusable, precision-machined aluminum body with a sealed glass grid surface
- Laser-engraved 10×10 counting grid for repeatable manual field analysis
- Ultra-thin crystal cover slide — reduces surface tension and distortion for sharper imaging
- Direct condenser illumination for improved clarity
- Individually serialized for full traceability

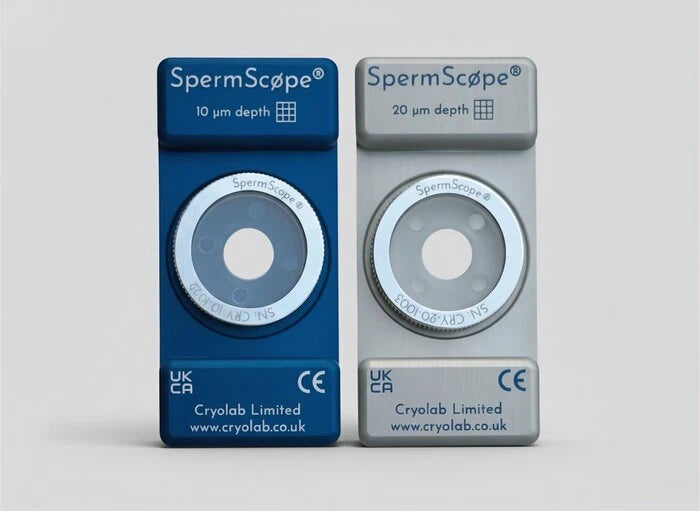

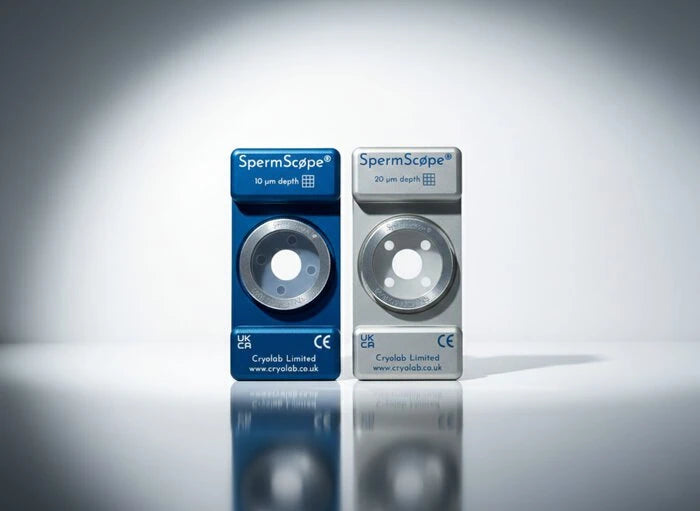

- Available in 10 µm (human) and 20 µm (veterinary/research) chamber depths
Specifications
| Spec | Detail |
|---|---|
| Type | Reusable manual analysis chamber |
| Grid | Laser-engraved 10 × 10 |
| Chamber depth | 10 µm (human) or 20 µm (veterinary/research) |
| Body | Precision-machined aluminum with sealed glass center |
| Cover | Ultra-thin crystal cover slide |
| Traceability | Individually serialized |
Applications
Manual cell observations in andrology and IVF laboratories, veterinary andrology, general cell counting (e.g., blood, tissue, and bacterial culture preparations), research, biobanking, and education.
For professional laboratory use only. For use by trained laboratory professionals.
Intended Use & Regulatory Statement
Intended use: The Precision SwimGrid is a reusable manual analysis chamber for use by trained laboratory professionals to perform manual observations of cells, including spermatozoa, under a light microscope. For professional laboratory use.
This device is not intended to provide diagnostic measurement.
Currently for research only.
Precision SwimGrid™ is a trademark of IVF Store LLC
