Okolab H601 Heated Glass Stage Inserts for Inverted Microscopes (Nikon, Olympus, Leica)
Okolab H601 Heated Glass Stage Inserts for Inverted Microscopes (Nikon, Olympus, Leica)
Okolab heated glass plates for inverted microscopes provide excellent thermal stability and optical clarity during delicate embryo observation and manipulation processes, including ICSI and laser-assisted oocyte hatching.
Design ensures that glass plates are perfectly flush with the microscope stage. Includes an Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass. An integrated surface sensor ensures the highest thermal accuracy in the specimen.
All H601- series plates feature anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass, encased in a rigid aluminum frame; these qualities ensure superior flatness and provide resistance against breakage and glass scratches.
Warranty:
2-year full manufacturer’s warranty from shipping date.
10-year warranty on glass damage for all H601- series products.
Heated glass stage inserts include our compact single-channel H401-T-PENNY temperature controller. H401-T-PENNY combines high performance and simplicity at an affordable price.
A trusted manufacturer since 2002, Okolab supplies top-quality, thoughtfully designed environmental control solutions to IVF facilities worldwide.
FEATURES

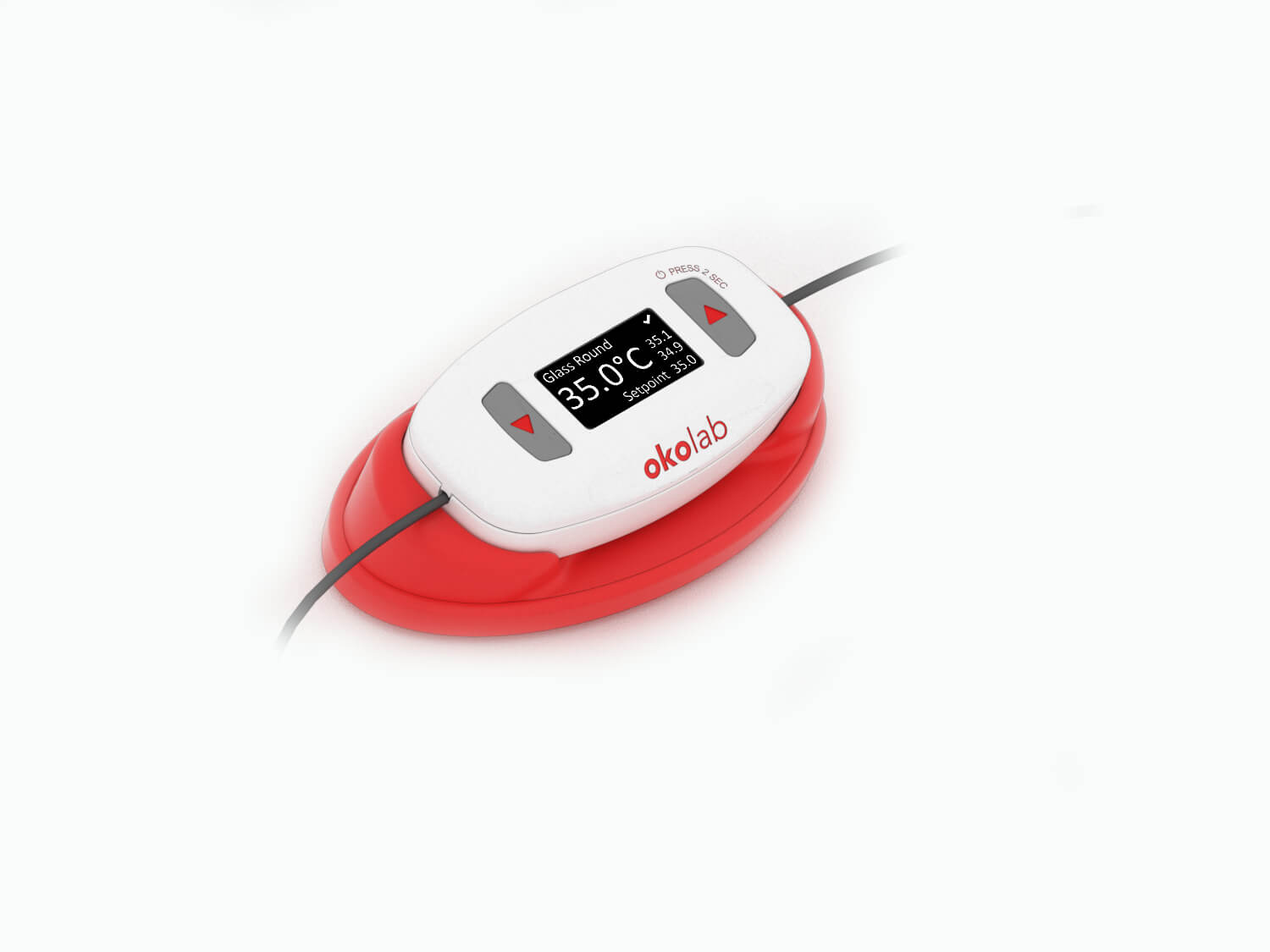

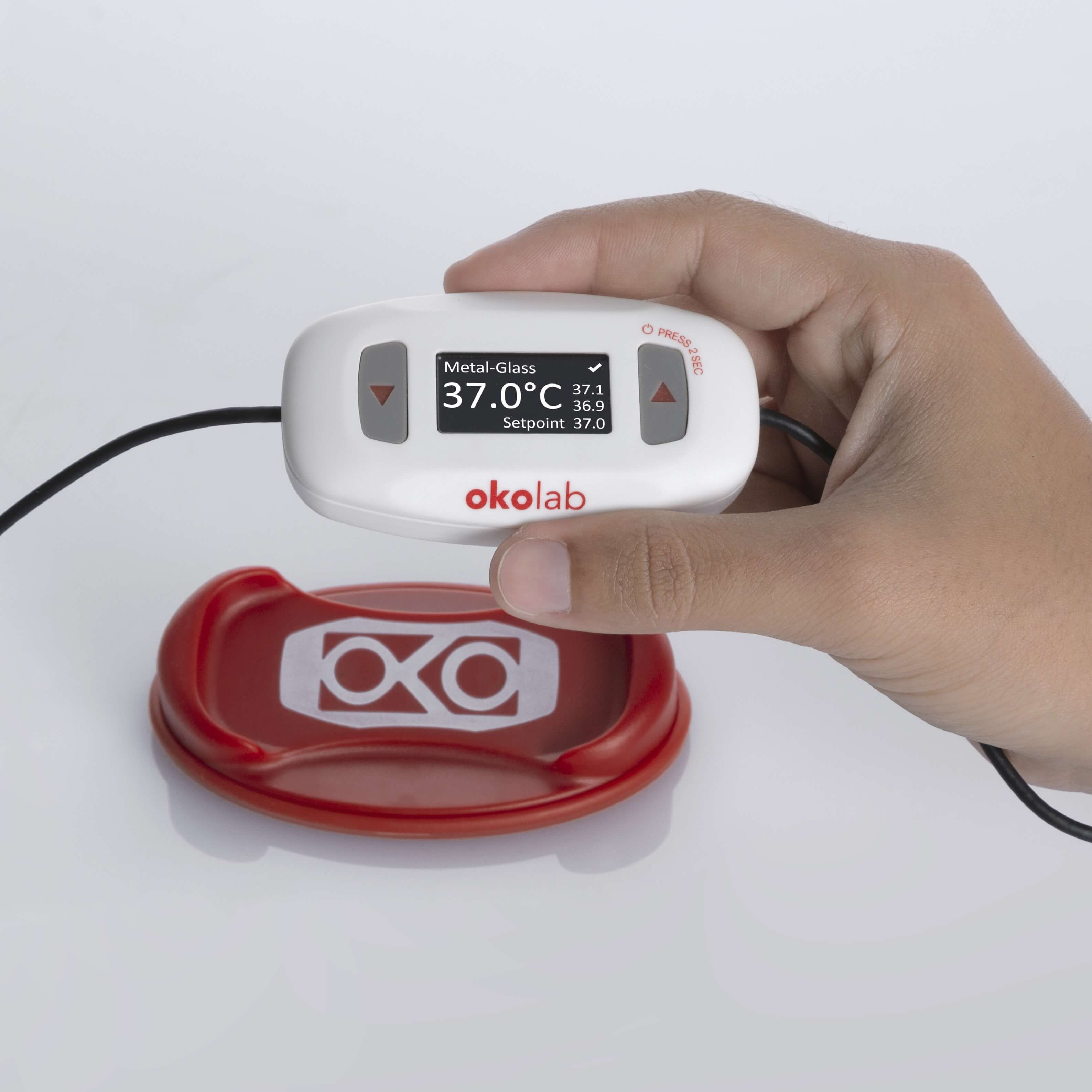

H401-T-PENNY Temperature Controller:
- T range: ambient to 60°C
- T sensor accuracy: ±0.1°C
- T accuracy on specimen: ±0.3°C after calibration, if room temperature remains within ±1°C
- Easy one-point temperature offset calibration

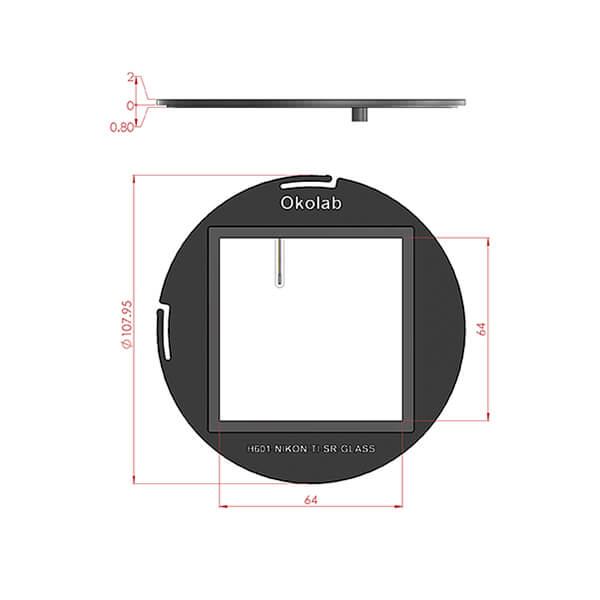

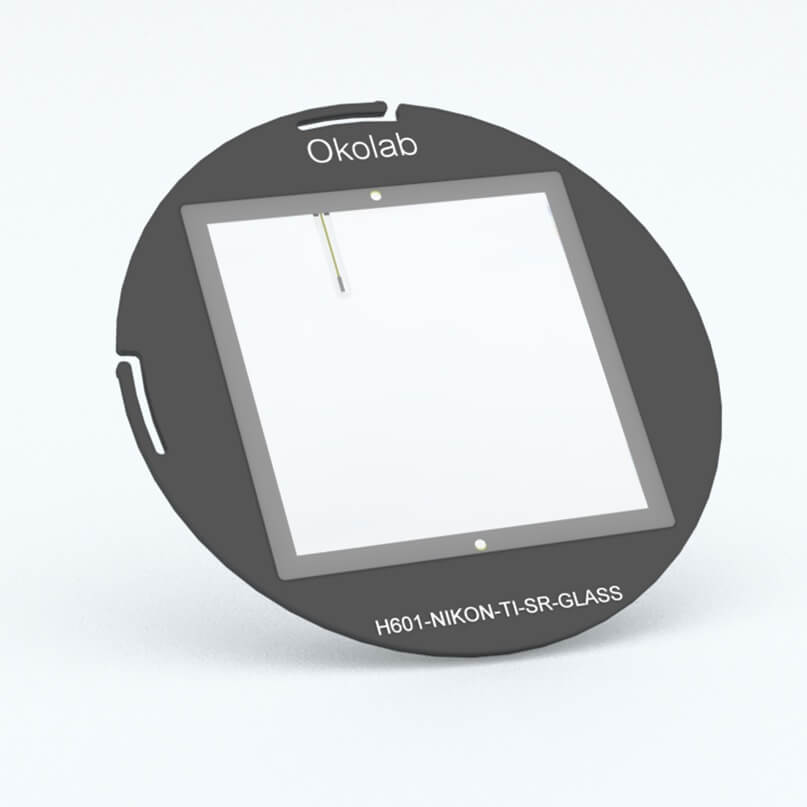

H601-NIKON-TI-SR-GLASS:
- Compatible with stage models: T/Ti-SR, Ti-SP
- Glass thickness: 0.5mm
- Dimension: φ108

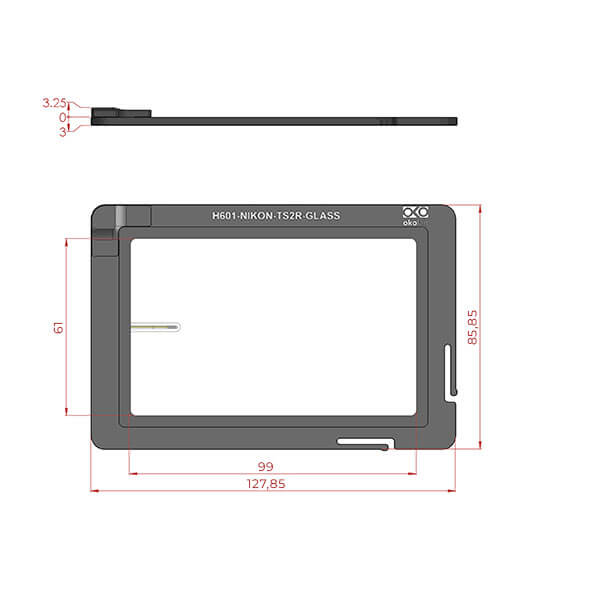

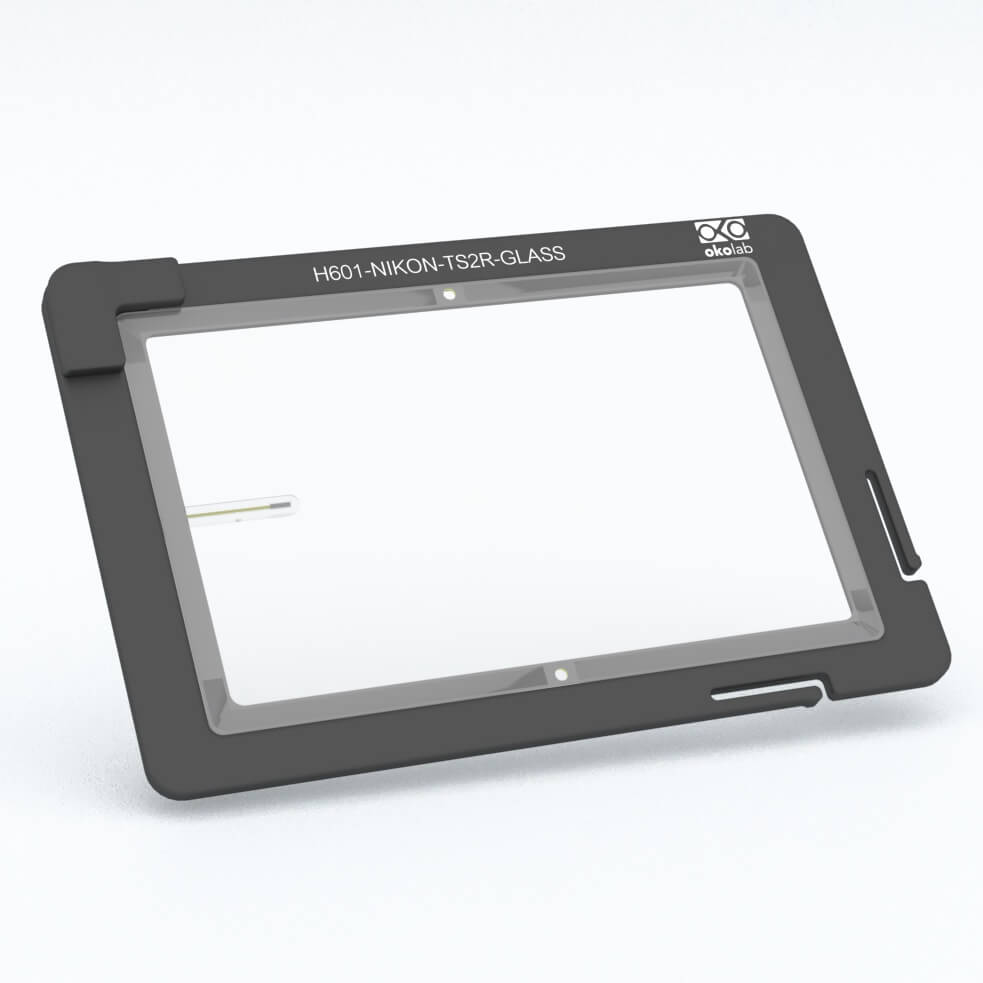

H601-NIKON-TS2R-GLASS:
- Compatible with stage models: TC-S-SR, TC-S-SRF, and TS2-S-SM; also compatible with any XY stage equipped with a holder for standard multiwell plates (128x86 mm)
- Glass thickness: 0.5mm

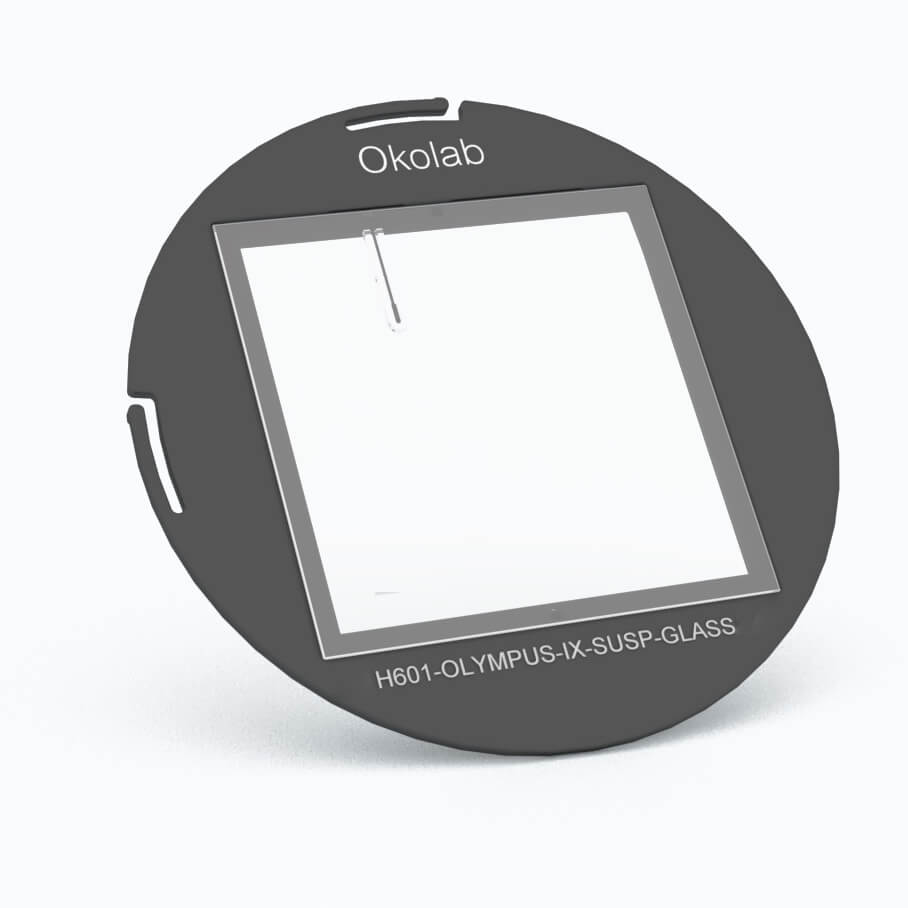

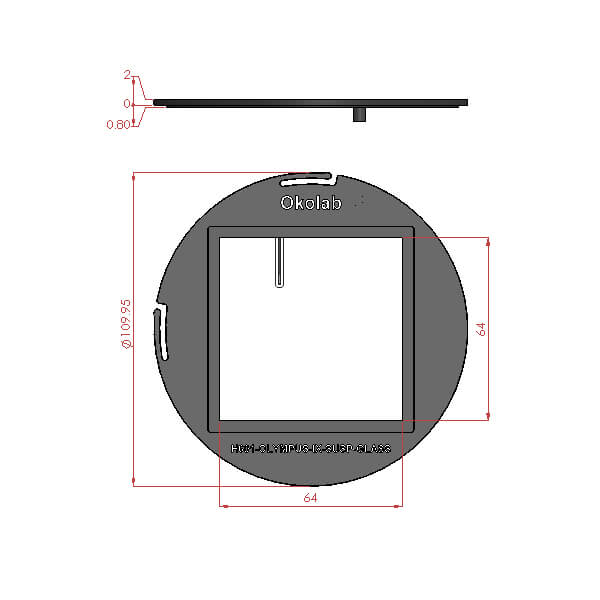

H601-OLYMPUS-IX-SUSP-GLASS:
- Compatible with stage models: IX-SUSP, GX-SVR, GX-SFR, BX3-SSU, IX2-SFR, IX2-SVL-2
- Glass thickness: 0.5mm
- Dimension: φ110

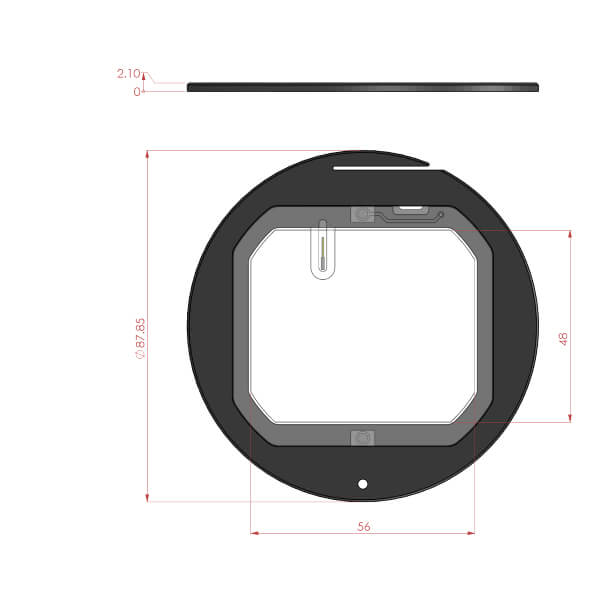

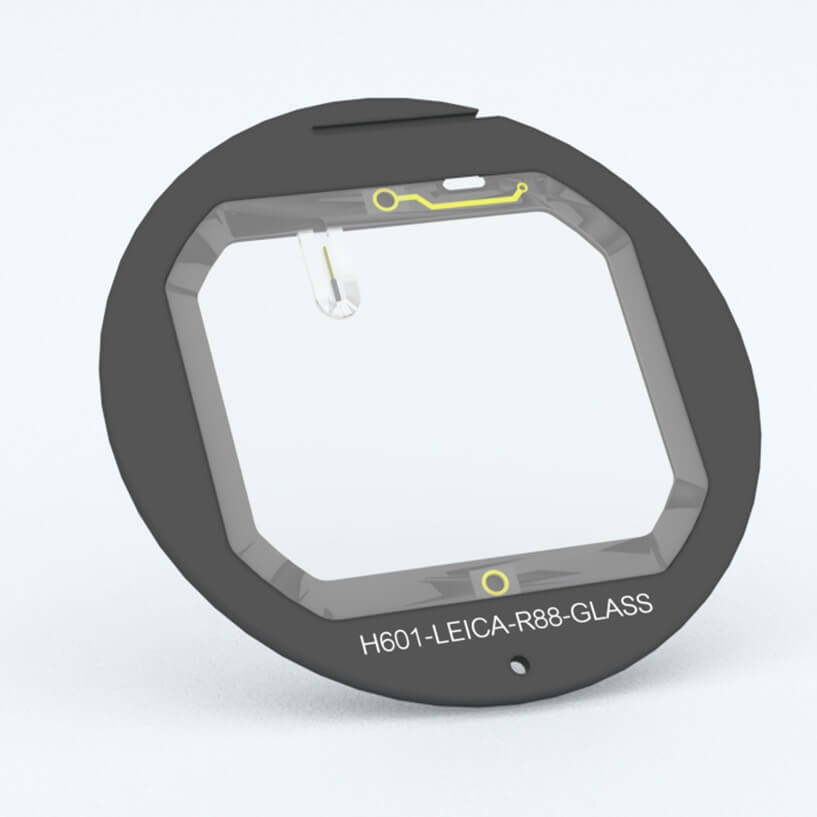

H601-LEICA-R88-GLASS:
- Compatible with stage models: manual 3-plate stage with 88mm circular opening
- Glass thickness: 0.5mm
- Dimension: φ88

Components:
H401-T-PENNY temperature controller with detachable inclined magnetic base
Power supply with replaceable power cord
Heated plate of your choice
User manual
