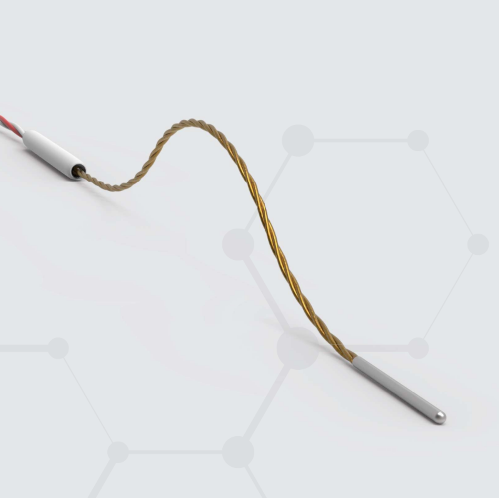

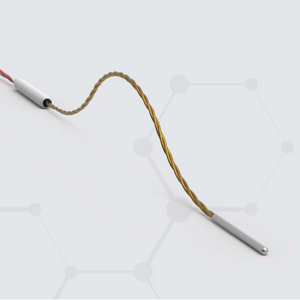

Nilotech PT120 Platinum 1mm Flexible Temperature Probe (for Embryoscope)
The Nilotech PT120 is a platinum 1mm flexible temperature probe designed for precision measurement in narrow openings down to 1mm in diameter. A compact design allows for unobstructive integration into a variety of systems while its PT-100 sensor offers high accuracy and stability over a wide temperature range. Approved for use with VitroLife Embryoscope systems, the PT120 enables real-time monitoring and control with its quick response time. The probe can be used on various surfaces, including metal, glass, and plastic, and is suitable for controlling heated stages and measuring liquids in water-tight pouches.
- Approved for use with VitroLife Embryoscope systems
- High accuracy PT-100 sensor with 0.03°C precision
- Quick response time with 0.01°C resolution
- Suitable for narrow openings down to 1 mm
- Durable design with flexible FR-4 and epoxy materials
- Operates in a wide temperature range of -50°C to 50°C
- Includes factory calibration certificate, ISO/IEC 17025 compliant
Click Here for Nilotech Instructions for Use
| Sensor type | Analog PT-100 temperature sensor (3 wire) |
|---|---|
| Measure range & accuracy | -50~50°C, 0.03°C accuracy possible |
| Display resolution and update | 0.01°C, one update per second |
| T90 (min:sec) | 0:25 |
| Compliance | ISO/EN61010-1 – RoHS |
| Operating conditions | 0~50°C / 5~95% RH |
| Cable length | 1.7m (including 0.5m flat cable) |
| Materials | Flexible FR-4, Epoxy |
| IP Class | IP50 |
| Calibration | Delivered with factory calibration certificate. Accuracy +/- 0.1°C. PT120 can be calibrated in accordance with ISO/IEC 17025. Calibration requires an adaptor. Part no: 115s001. |
