MX5 Swing-Out Centrifuge

Regular price $2,300.00

SKU: M5C-08SU-15T1

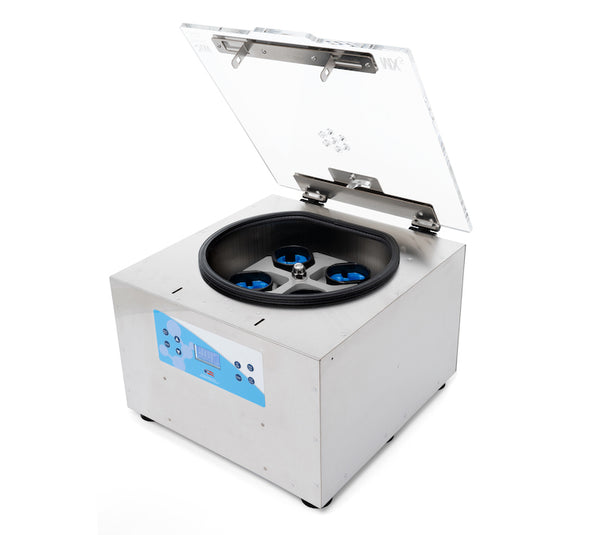

MX5 Swing-Out Centrifuge

Horizontal separation offers many advantages over traditional fixed-angle
separations, including tighter straight-line gel separations to reduce
re-spins and re-mixes. The MX5 Centrifuge spins test tubes, up to 17.5 x 128mm,  at speeds up to 5,000 rpm, with microprocessor speed control. G-forces up to 4,220g’s will produce platelet-poor plasma in minutes. The digital menu is simple-to-use and the digital interface ensures accurate processing.

The zero-rpm interlocking lid will stay locked until the rotor has come to a stop, to ensure safety.

The all-metal rotors and tube shields are built for strength and durability, and the wide-mouth metal bowl allows for easy cleanup. The whisper-quiet heavy-duty brushless DC motor can handle high volume use and high-speed full loads for years to come.


  • LCD display
  • Rubber feet to prevent slipping
  • Impact-resistant lid
  • Zero-rpm interlocking lid
  • Large opening for easy clean-up
  • Metal rotor and tube shields
  • Cooler chamber for cooler samples


  • 9 programmable settings
  • Digital rotor selection
  • Ability to display rpm or g-force
  • High-strength aluminum body
  • Adjustable acceleration and braking
  • Straight-line separation for accurate processing
  • Reduces high potassium results
  • Tighter gel line reduces re-mixing and re-spins
  • Very high g-forces for fast separation
  • Fast and accurate veterinary fecal flotations
  • Platelet-poor plasma in minutes

Weight and Dimensions

  • Unit (No rotor):
  • Height: 11.5” (292 mm)
  • Length: 16.5” (419 mm)
  • Width: 16” (419 mm)
  • Weight: 38.25 lb (17.34 kg)
  • Packaged (No rotor):
  • Height: 16” (406 mm)
  • Length: 20” (508 mm)
  • Width: 20” (508 mm)
  • Weight: 43.2 lb (19.59 kg)
Model Description

MX5 Swing-Out, 8-Place Rotor, 15ml inserts

MX5 Swing-Out Bucket Rotor, 24-Place, 4ml-10ml Inserts
MX5 Swing-Out Bucket Rotor, 4-Place, 50ml Inserts


Product Manual


8-Place Rotor:

• Spins 8, 3ml-15ml tubes
• Maximum 5,000rpm/4,220g

24-Place Rotor:

• Spins 24, 3ml-10ml tubes
• Spins 8, 15ml conical tubes
• Maximum 5,000rpm/4,220g


4-Place Rotor:

• Spins 4, 50ml tubes
• Maximum 5,000rpm/ 4,220g
