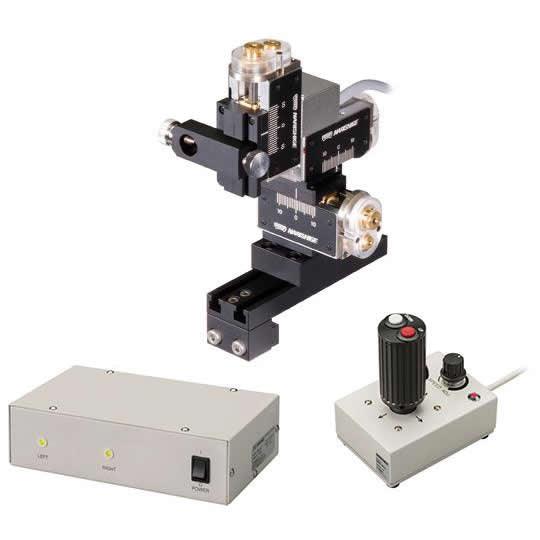

MM-94VM Narishige Motor Drive Manipulator
Coarse manipulator for our most popular motor-drive system.
This motor-drive coarse manipulator is used for initial positioning of the pipette within the microscope field of view. It is controlled remotely using the joystick. Z-axis moves at double the speed of X/Y-axis, so that time for sample change will reduce. MM-94VM is the set of dedicated drive unit for right-side, controller, and control unit.
PLEASE NOTE: THE MM-94 AND MM-94VM ARE THE SAME DEVICE, ALTHOUGH IT IS SOLD AS MM-94VM WITHIN THE U.S.
* MM-94VM is right-sided model.
* MM-94BVM is the left-sided model.
Control Unit
For the full setup with right and left-side, MM-94VM and MM-94BVM share one control unit.
MM-94VM can be placed upright with the use of the control box stand (PS-1).
Specification:
| Accessories included | Power Cord, Hex Wrench | |
|---|---|---|
| Movement range | Coarse | X22mm, Y22mm, Z22mm |
| Driving speed | X/Y axis | 1.4mm/s (with use of high-speed button) Maximum speed 0.7mm/s (with use of speed adjusting knob) Minimum speed 0.1mm/s (with use of speed adjusting knob) |
| Z axis | 2.8mm/s (with use of high-speed button) Maximum speed 1.4mm/s (with use of speed adjusting knob) Minimum speed 0.2mm/s (with use of speed adjusting knob) |
|
| Working voltage | AC100 ~ 240V, 50/60Hz | |
| Power consumpution | Approx. 10W | |
| Dimensions/Weight | Control unit | W204 × D135 × H62mm, 1.05kg |
| Controller | W70 × D100 × H120mm, 530g, Connecting cable (1.2m) | |
| Drive unit | W85 × D112 × H144mm, 591g, Connecting cable (1.2m) | |
