Heat-Wise: Where Innovation Meets Temperature.
Designed exclusively for the "CUBE" (AD-3100) handheld chamber.

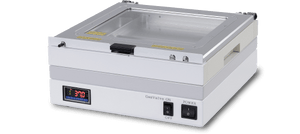

The Heat-Wise (RH-3100) unit with optional Hand-Held Chamber minimizes the effect of fluctuations in the environment.
Its straightforward and sturdy design guarantees user-friendliness without complication.
Specifications
Heating Stage for Handheld Chamber
| Model | RH-3100 |
|---|---|
| Size (W×D×H) | W252 mm × D270 mm × H77 mm |
| Temp. Control | Digital PID Control |
| Temp. control range | Room temp. +7℃～40℃ |
| Temp. fluctuation range | ±0.3 |
| Temp. distribution accuracy | Aluminum Surface ±0.5℃ |
| Gas connection port | IN/OUT (OD: 6mm) |
| Weight | 3.2kg |
| Power | AC100-240V 1A(Max)50/60Hz |
Hand Held Chamber(Single Lid Design)
| Model | HC-3100 |
|---|---|
| Size (W×D×H) | W180 mm × D217 mm × H20 mm |
| Capacity | 781mL |
| Dish number | 35mm: 12 dishes 60mm: 6 dishes 4well: 4 dishes |
