CO2 Gas Analyzer
CO2 Gas Analyzer

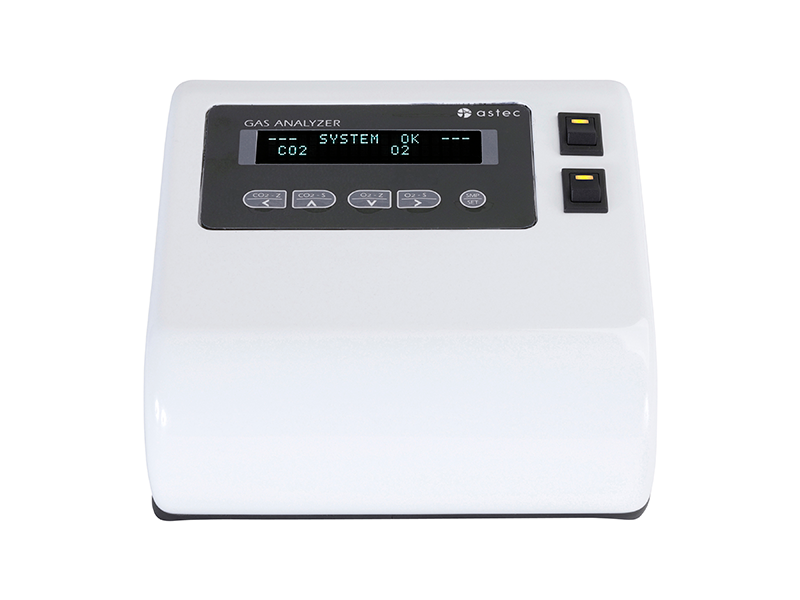

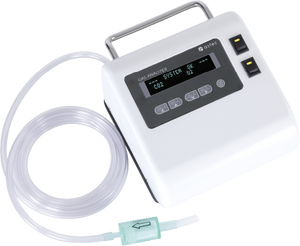

The AGA-2021 ASTEC Gas Analyzer by Astec quickly and accurately measures CO2 and O2 levels in the incubator, helping you maintain ideal conditions for cell development.
Reliable and Accurate
The AGA-2021 utilizes an IR sensor for CO2 and galvanic sensor for O2.
These proven sensor technologies give rise to reliable, accurate reading time after time.
Two-Point Calibration
Two kinds of gases – CO2 and O2 – can be measured in one sampling.
Built-in durable pump can send gas mixture back to the incubator when required.
Compact and Portable
- Light weight and compact dimensions
- Convenient grab handle
- Magnets for attaching to incubator side
- Rechargeable battery
| Model | AGA-2021 |
|---|---|
| Size (WDH) | 170 x 170 x 100 mm |
| CO2 sensor | Infra Red Sensor |
| CO2 measuring range | 0-18% |
| CO2 accuracy | ±0.1% |
| O2 sensor | Galvanic sensor |
| O2 measuring range | 0-22% |
| O2 accuracy | ±0.1% |
| Weight | 2.0kg |
| Power | AC100V～240V 50/60Hz 0.3A (Max) |
| Battery Run time | Up to 4 hours without recharge / 15 hours in sleep mode |
| Required time for full recharging | 7 hours |
| Operating temperature limits | 10～35C |
| Operating humidity range | 0～80% |
| Storage temperature range | -20～50C |
| Storage humidity range | 20～80% |
