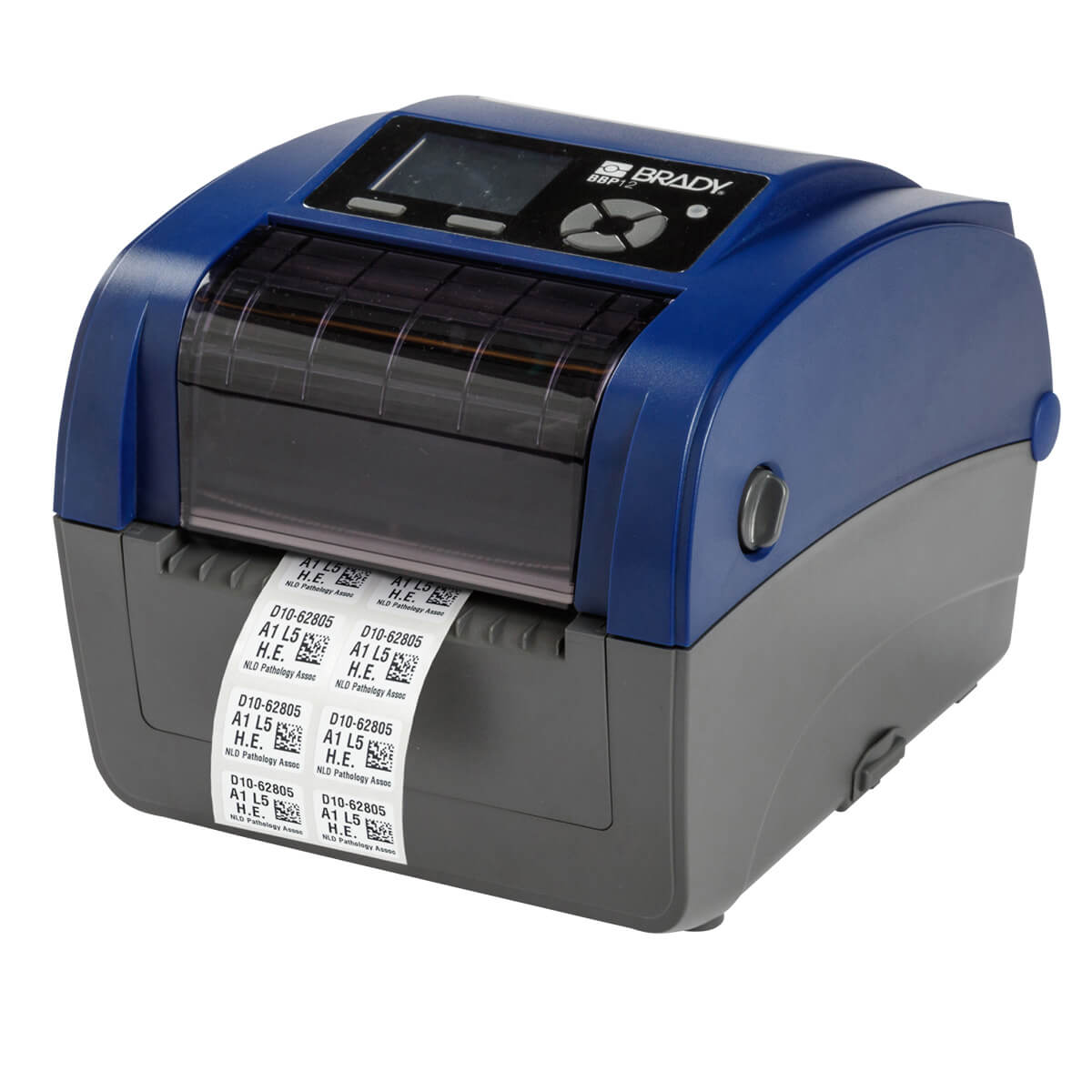

BBP12 Label Printer
-
Device Connectivity:
PC connected
-
Print Resolution:
300 dpi
-
Print Technology:
Thermal Transfer
-
Maximum Labels per Day:
1000
-
Maximum Label/Tape Width:
4.6 in
-
Color Printing Capability:
Single Color
The BBP®12 Label Printer packs a lot of punch into one compact tool with its high-speed printing, an extended list of labeling options and a simple, user-friendly design.
- BBP®12 gives you the versatility to print all your basic label types from one machine - saving costs, reducing downtime and simplifying your labeling
- Over 800 varieties of labels, including external-feed bulk rolls and custom parts, for general identification, wire marking, asset tracking and more
- Specifically designed small-core media rolls and ribbons provide fast installation and reduce change-over time
- Centering ribbon spindle virtually eliminates ribbon wrinkle
- Compatible with 3" core media rolls if using the external media holder (sold separately - BBP12-U)
- Compact size won’t clutter your workplace or bench
- Add Brady Workstation Product and Wire ID Software Suite (BBP12-NA-PWID) to your solution and make label creation even easier
Specifications
| Key Characteristics | Catalog Page # | 100 |
| Product Number | 146202 | |
| UPC | 754473549220 | |
| UOM | Each | |
| Trade Name | BBP®12 | |
| Brand Name | Brady® |
| Dimensions | Dimensions | 7.5 in H x 7.99 in W x 10.21 in D |
| Height | 7.5 in | |
| Width | 7.99 in | |
| Depth | 10.21 in | |
| Core Diameter | 1 in | |
| Display Size | 2.3 in | |
| Weight | 5.07 lb |
| Material Characteristics | Color | Blue, Gray |
| Product Features | Application | Asset Tracking, Barcode Labeling, Laboratory Labeling, Wire and Cable Labeling |
| Built-In Label Wizards | No | |
| Connectivity Option | Ethernet, RS232, USB 2.0, USB Host | |
| Cutter Type | None | |
| Device Connectivity | PC connected | |
| Display Type | Monocolor LCD Screen | |
| Media Sensor Type | Black Mark, Gap Sensor, Head Open, Ribbon End | |
| Memory | 128 MB Flash, 64 MB SDRAM, SD Flash memory card up to 32 GB | |
| Plug Type | US | |
| Power Supply Voltage | 110 - 240 V | |
| Auto Shut-Off / Power Conserve | No | |
| Print Preview Feature? | No | |
| User Interface Type | LCD + Navigation Keys | |
| Battery Type | Lithium-manganese Battery | |
| Operating System | Windows® 10, Windows® 7, Windows® 8 |
| Printing Specifications | Automatic Label Set Up | No |
| Barcode Symbologies - 2D | Aztec, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR Code | |
| Barcode Symbologies - Linear | China Post, Codabar (NW-7), Code 11, Code 128, Code 39, Code 49, Code 93, Deutsche Post (Identcode/Leitcode), EAN/JAN-13, EAN/JAN-8, GS1 DataBar, GS1 DataBar Stacked Omnidirectional, GS1-128, Interleaved 2 of 5, ITF-14, MSI Plessey, POSTNET, Telepen, UPC-A, UPC-E | |
| Calibration Required? | Yes | |
| Color Printing Capability | Single Color | |
| Maximum Labels per Day | 1000 | |
| Maximum Label/Tape Width | 4.6 in | |
| Minimum Label Length | 0.39 in | |
| Maximum Print Speed | 4 in/s | |
| Maximum Printed Label Length | 450 in | |
| Print Resolution | 300 dpi | |
| Print Technology | Thermal Transfer | |
| Programming Language | Built-in ZPL Emulator | |
| Media Sensor Adjustment | Yes |
| Compatibility | Compatible Media | 2HX-, 3PS-, HX-, PS-, THT- |
| Label Material Types | Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate | |
| Materials Supported | Bulk, Continuous, Custom, Die-cut | |
| Custom Labels Available | Yes | |
| Maximum Print Width | 4.15 in | |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use | |
| Languages Available | Bulgarian, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (US), Finnish, French (France), German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese (Portugal), Russian, Slovak, Spanish (Spain), Swedish, Turkish |
|
What's Included |
Includes | (1) BBP12 Printer (BBP12-US), (1) Drivers CD, (1) Power Cord, (1) Quick Start Guide, (1) Ribbon Paper Core, (1) USB Cable |
| Model | BBP12 | |
| Warranty | 5 Years |
| Compliance | California Prop 65 | No warning label required |
| REACH SVHC Status | Part does not contain an SVHC | |
| REACH Candidate List Date | 04 February 2026 | |
| Country of Origin | China | |
| ECCN (Export Commodity Control Number) | EAR99 | |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 | |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 | |
| UNSPSC | 45101519 |
