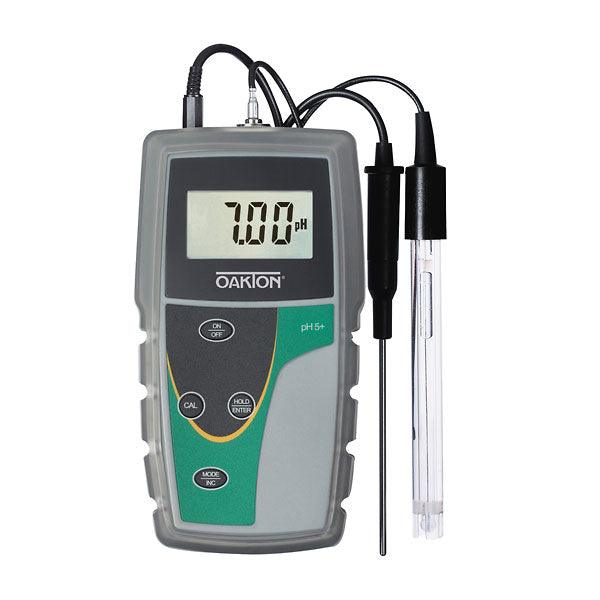

pH 5+ Handheld Meter
The microprocessor-based pH 5+ meter is OAKTON’s most economical portable pH meter, yet it gives you the same high accuracy and reliability of our other portable meters! Use this meter to take routine pH and temperature measurements. Meter includes a protective rubber boot that also acts as a meter stand. High ±0.01 pH accuracy at economical prices
Features:
- Reads pH and temperature
- Automatic Temperature Compensation (ATC)
- All push button operation
- Three-point pH calibration
- Auto buffer recognition
- Hold function; Auto-off
- Use with most pH electrodes with BNC connectors
Details:
| Measures | pH, °C |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| pH Calibration | 3 points (pH 4.01, 7.00, 10.00) |
| Temperature Range | 0.0 to 100.0°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Calibration | Offset 0.1°C increments |
| ATC | Manual or automatic from 0.0 to 100.0°C |
| Power | 4 1.5 V AA batteries, 200 hours continuous use |
| Built-in Stand | Yes |
| Dimensions | 6 3/16" x 3 3/8" x 1 11/16" (15.7 x 8.5 x 4.2 cm) |
Specification:
| Mfr No. WD-35613-50 | pH 5+ Meter with ATC probe, rubber boot, and batteries |
| Mfr No. WD-35613-52 | pH 5+ Meter with single-junction, sealed, epoxy-body electrode, ATC probe, rubber boot, and batteries |
| Mfr No. EW-05993-00 | Microelectrode PH BNC |
Microelectrode pH BNC - SKU: EW-05993-00
Take pH measurements in samples as low as 10 µl--even from filter paper and agarose gel.
- Obtain best results in mV or relative mV mode
- Temperature range is 32 to 167ºF (0 to 75ºC)
- Immersion depth is 500 µm
Unbreakable microelectrodes combine measuring and reference cells in a single probe. Tip diameter is less than 1000 µm--fits microwell plates, small capillary tubes, and more. Electrodes are accurate to ±0.01 pH units from 0 to 12 pH. Low impedence provides stable readings. Includes filling solution, plastic dispenser, and manual.
- Electrode Type: Single junction
- Electrode Body Material: Glass
- Max Temperature (° C): 75
- Connector: BNC
- Diameter (mm): 1
- Length (mm): 140
- Description: Micro electrode with BNC
- Warranty: 6 month warranty
