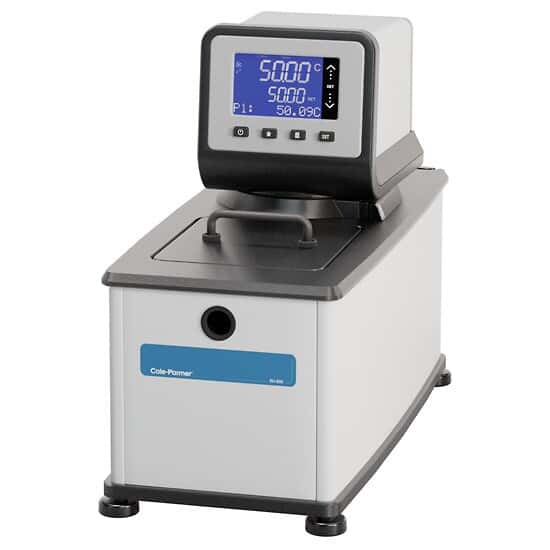

Cole-Parmer RH-800 Digital Plus Heated Circulator, 7L; 120 VAC
Cole-Parmer RH-800 Digital Plus Heated Circulator, 7L; 120 VAC
Includes
reservoir lid, bypass tubing, 1/4" NPT(M) to barbed adapter set, and power cord set.
Key Features
- Closed-loop functionality provides greater temperature stability at the external apparatus
- Temperature calibration increases accuracy
- Intuitive interface uses readily recognizable icons
- Controller panel swivels for easy viewing from any angle
- Features: Digital Plus control and a 7 L reservoir│Operates on 120 V
- 3 year warranty
More About this Item
These integrated heated circulators offer reliable, stable temperature control. Single-point temperature calibration allows you to program an offset temperature, enhancing temperature control precision. Large, backlit LCD shows set point and actual bath temperatures simultaneously. Safety and convenience features include overtemperature protection, failsafe heater control, high and low temperature limits with alarms, low-liquid level alarm, alarm and fault messages, and automatic loss of power reset.
Advanced Controller Models offer dual variable-speed circulating pressure and suction pumps for open-loop applications, plus on-board connectivity via RS-232, RS-485, USB, Ethernet, and an external temperature probe. Additional control functions include automatic external temperature sensor-based heater adjustment, a timer, and fluid optimization with specific heat tuning.
Specifications
| Bath Type | Heated circulating |
| Reservoir Capacity (L) | 7 |
| Max Temperature (° C) | 200 |
| Min Temperature (° C) | Ambient + 10 |
| Temperature Stability (° C) | ±0.01°C |
| Pump Type | Force & Suction |
| Max Flow Rate (L/min) | 11 |
| Max Pump Pressure (PSI) | 4.3 |
| Max Pump Pressure (mbar) | 300 |
| Low-Level Cutoff | Yes |
| Depth (in) | 5 |
| Working Area Width (in) | 5 5/8 |
| Working Area Length (in) | 6 1/4 |
| Heater Wattage (watts) | 1100 |
| Temperature Control | Digital Plus |
| Drain Valve | Yes |
| Interface | RS-232, RS-485, USB, Ethernet |
| Display Type | 3-3/4" (9.5 cm) LCD, backlight |
| Wetted Materials | Stainless steel and polymers |
| Power (VAC) | 115 |
| Power (Hz) | 60 |
| Description | Digital Plus Heated Circulator, 7L; 120V/60Hz |
| Warranty | 3 Years |
