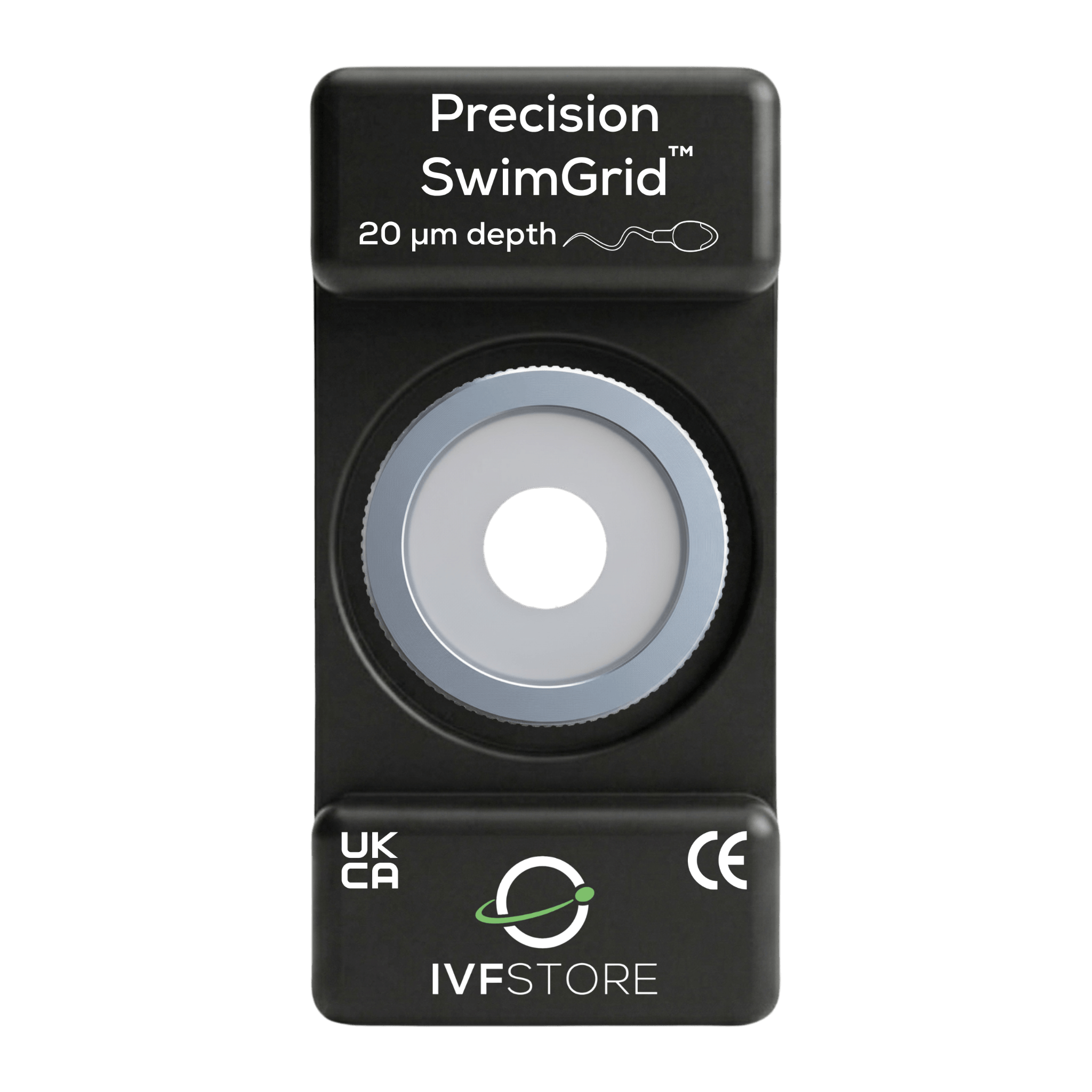

Precision SwimGrid™ Reusable Counting Chamber
The Precision SwimGrid is a reusable manual counting chamber designed for trained laboratory professionals performing manual cell counts under a light microscope. Built from a precision-machined aluminum body with a sealed glass center, it carries a laser-engraved 10×10 counting grid for consistent, repeatable field counting of spermatozoa and other cell types.
An ultra-thin crystal cover slide sits close to the sample to minimize surface tension and allow direct illumination from the microscope condenser, producing sharper images with reduced optical distortion. Each chamber is individually serialized for traceability, making it well suited to andrology, IVF, veterinary, research, biobank, and educational laboratories.

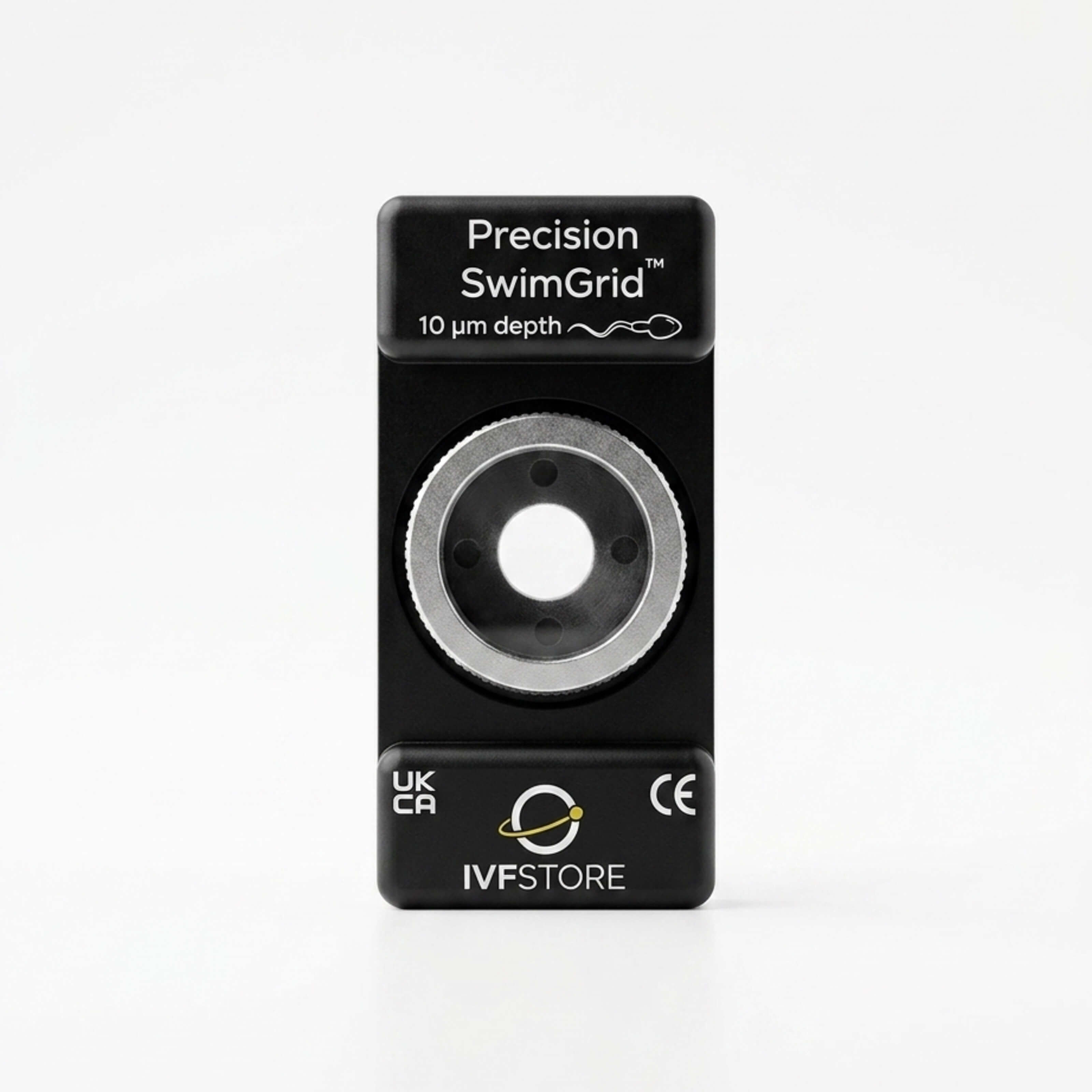

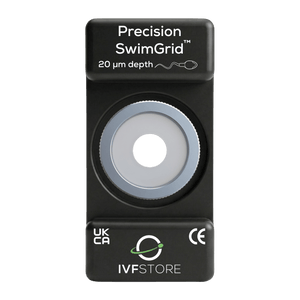

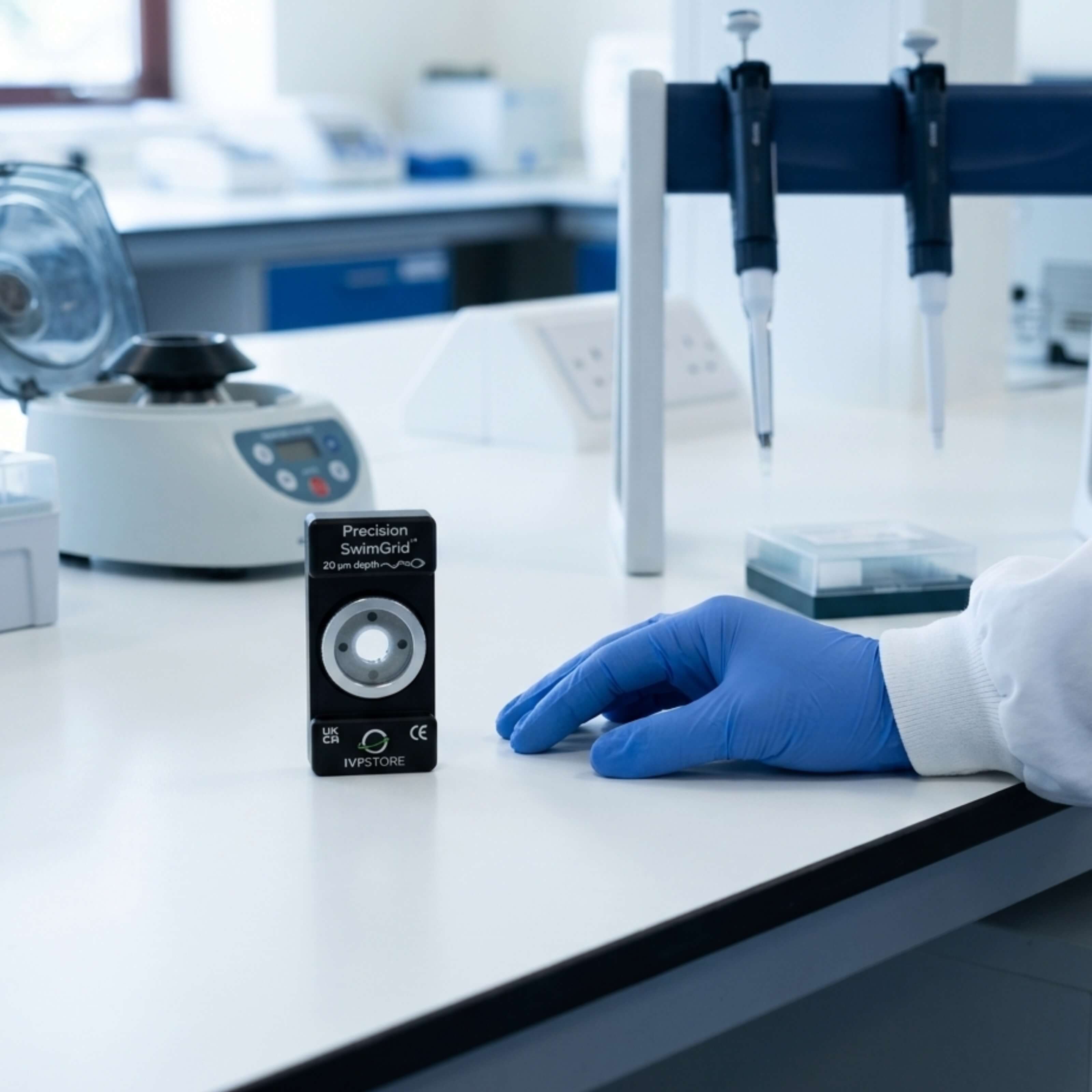

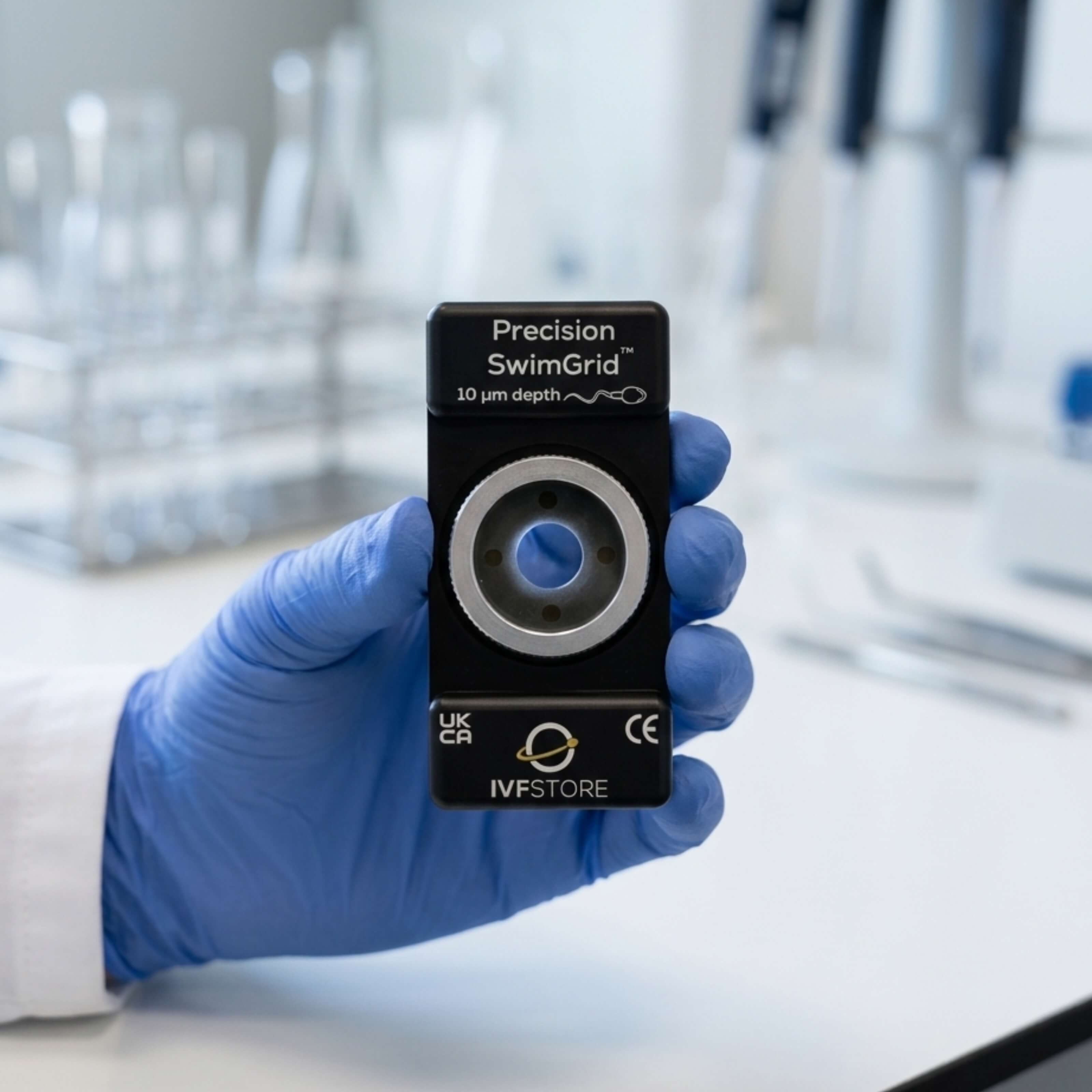

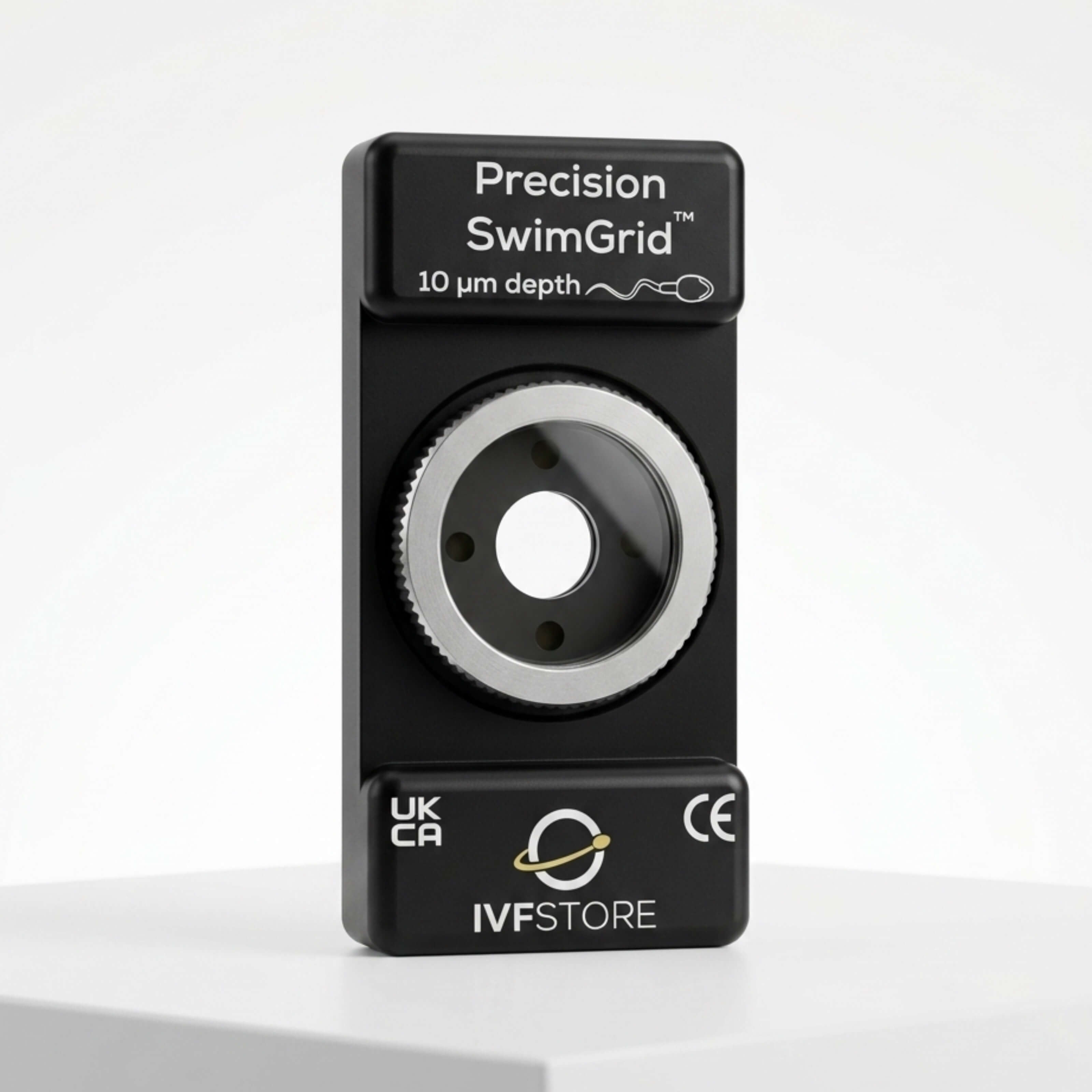

Available in a 10 µm depth for human laboratories and a 20 µm depth for veterinary and research applications.
Key Features
- Reusable, precision-machined aluminum body with a sealed glass counting surface
- Laser-engraved 10×10 counting grid for repeatable manual field counts
- Ultra-thin crystal cover slide — reduces surface tension and distortion for sharper imaging
- Direct condenser illumination for improved clarity
- Individually serialized for full traceability
- Available in 10 µm (human) and 20 µm (veterinary/research) chamber depths
Specifications
| Spec | Detail |
|---|---|
| Type | Reusable manual counting chamber |
| Grid | Laser-engraved 10 × 10 |
| Chamber depth | 10 µm (human) or 20 µm (veterinary/research) |
| Body | Precision-machined aluminum with sealed glass center |
| Cover | Ultra-thin crystal cover slide |
| Traceability | Individually serialized |
Applications
Manual cell counting in andrology and IVF laboratories, veterinary andrology, general cell counting (e.g., blood, tissue, and bacterial culture preparations), research, biobanking, and education.
Intended Use & Regulatory Statement
Intended use: The Precision SwimGrid is a reusable manual counting chamber for use by trained laboratory professionals to perform manual counts of cells, including spermatozoa, under a light microscope. For professional laboratory use.
This device is not intended to provide diagnostic measurement.
Currently for research only.
Precision SwimGrid™ is a trademark of IVF Store LLC
