Okolab heated glass plates for stereomicroscopes provide excellent thermal stability during oocyte pickup, or any other IVF observation and manipulation process under a stereomicroscope.
Glass plates provide a controlled temperature and optically transparent surface. Includes an Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass. An integrated surface sensor ensures the highest thermal accuracy in the specimen. Rigid aluminum frame provides superior resistance and flatness.
These heated inserts are designed for a perfect fit with specific common stereomicroscope base models - compatibility information is listed below. If your base model is not listed, or if you prefer a larger heated surface, please consider Okolab’s Universal Glass Table.
Warranty:
2-year full manufacturer’s warranty from shipping date.
Heated glass plates for stereomicroscopes include our compact single-channel H401-T-PENNY temperature controller. H401-T-PENNY combines high performance and simplicity at an affordable price.
A trusted manufacturer since 2002, Okolab supplies top-quality, thoughtfully designed environmental control solutions to IVF facilities worldwide.
FEATURES
H401-T-PENNY Temperature Controller:
- T range: ambient to 60°C
- T sensor accuracy: ±0.1°C
- T accuracy on specimen: ±0.3°C after calibration, if room temperature remains within ±1°C
- Easy one-point temperature calibration

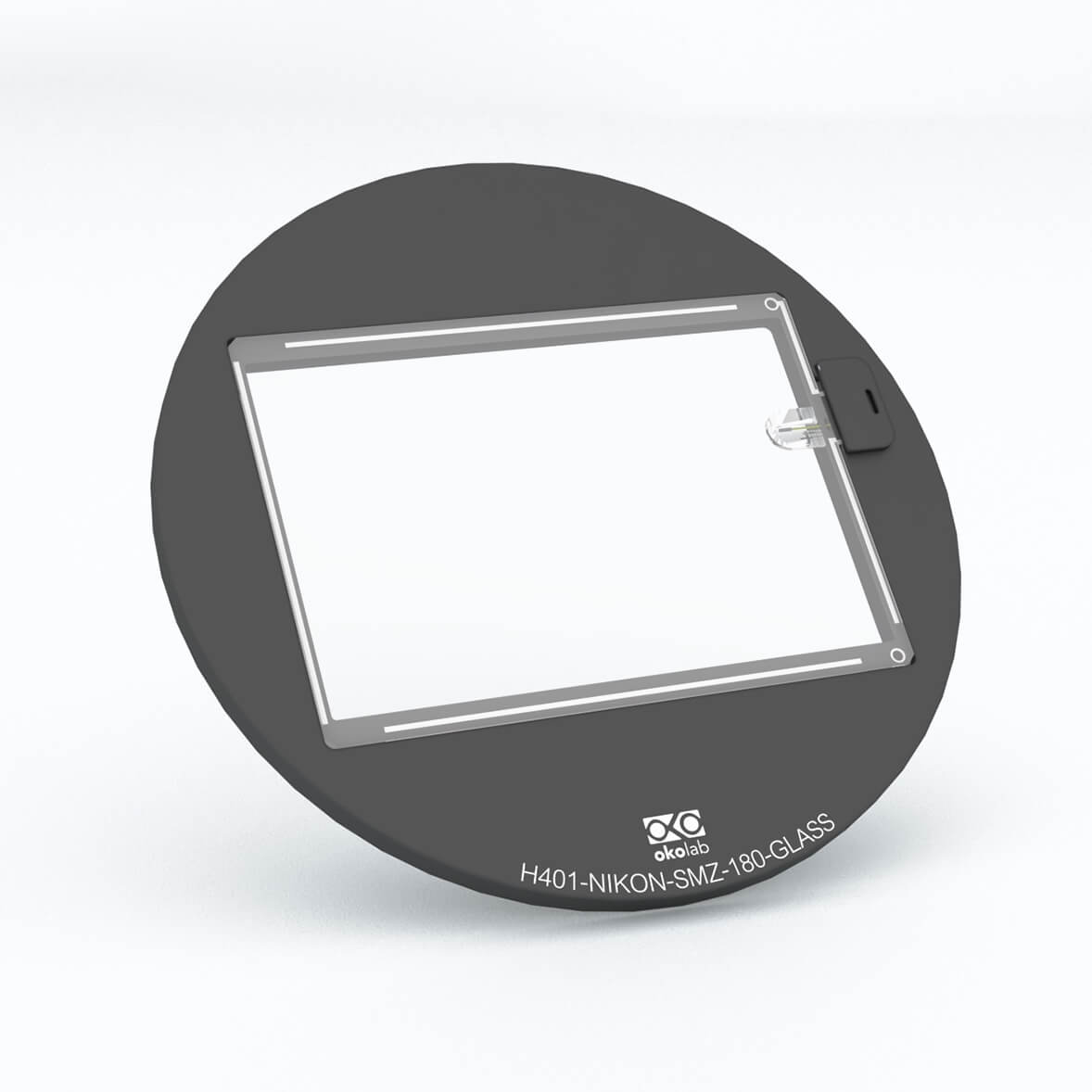

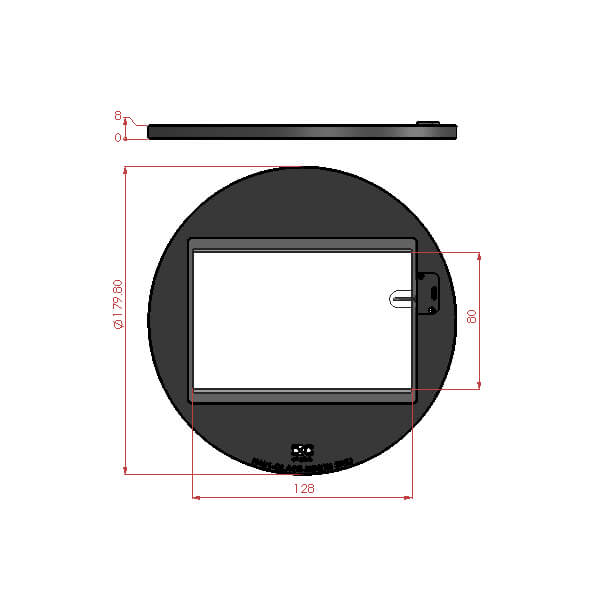

H401-NIKON-SMZ-180-GLASS:
- Fits in Nikon SMZ-series stereomicroscope bases with 180mm circular opening
- Glass thickness: 2 mm
- Dimension: φ180

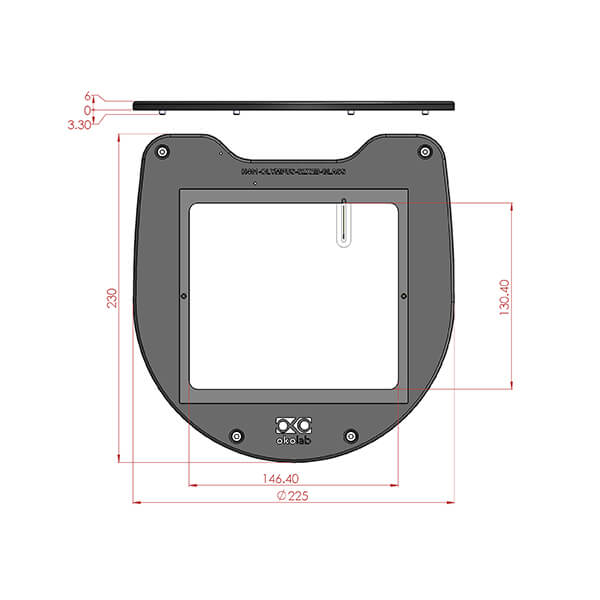

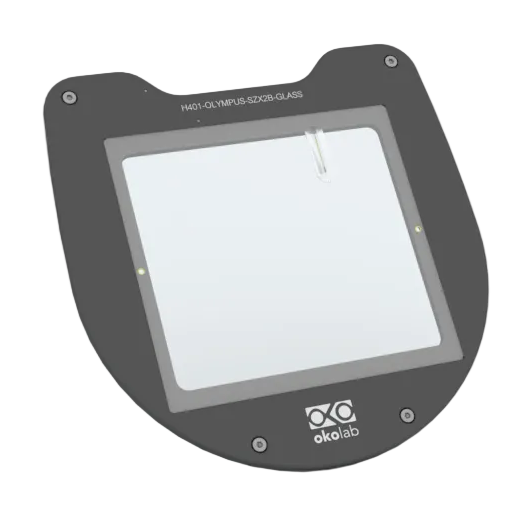

H401-OLYMPUS-SZX2B-GLASS:
- Fits on the Olympus MVX-series and SZX-series stereomicroscope bases
- Glass thickness: 1 mm
Components:
H401-T-PENNY temperature controller with detachable inclined magnetic base
Power supply with replaceable power cord
Heated plate of your choice
User manual
