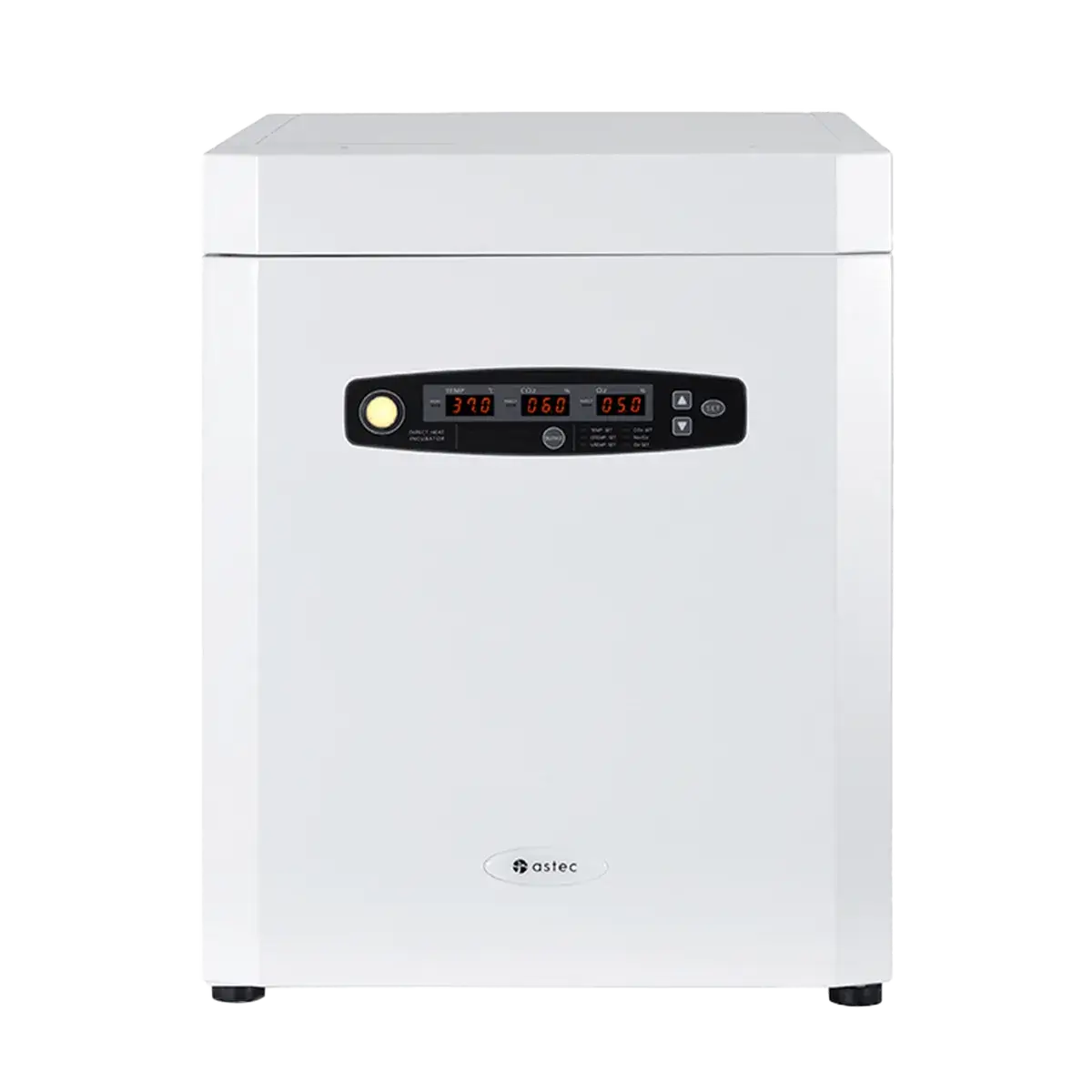

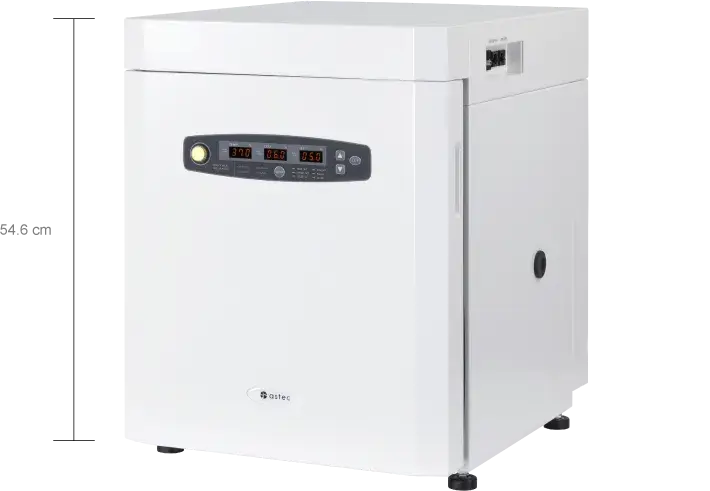

Direct Heat Incubator 30L with Dry heat Sterilization
World’s Smallest Dry Heat Sterilization Incubator
Introducing our smallest long-trusted SCA/SMA incubator with direct heating system. SCA/SMA 30 DRS Direct Heat incubators provide reliable performance and friendly operation. From basic to cutting-edge research with challenging applications, this small but mighty champion is designed to help you meet your challenges in the lab.
Choose from 30 liter or 50 liter capacities with either a TC or IR CO2 sensor. A galvanic battery O2 sensor is also available. Penguin AQ can be ideally configured to be the best solution for your cell culture needs.
Low Consumption & Energy Saving
Our mission is to create technologically advanced equipment while maintaining low consumption and energy footprint. Our 30L unit is Suitable for sensitive applications such as regenerative medicine where delicate cell culturing is required. Excellent stability in temp and gas levels proven by its predecessors in the market (80 and 165L) for the past 15 years.
Fully loaded
Our 30L Mighty Champion comes with Infra-red (IR) or Thermal conductive (TC) CO2 sensors, optional O2 control, and with or without dry-heat sterilization. All Astec SCA/SMA models include an internal chamber HEPA filter, low profile rolling bases and outputs for external alarm and running condition monitoring systems. We also provide a two year warranty with all our incubators.

Available with a full glass inner door or optional stainless and glass multi-level door. Inner chamber has rounded corners to make cleanup easy providing a cleaner environment.
Other options include an internal chamber HEPA filter, low profile rolling bases and outputs for external alarm and running condition monitoring systems.




Specification
SCA-30DRS
| External Dimensions W x D x H |
W415 x D486 x H546 (mm) |
|---|---|
| Chamber Dimensions W x D x H |
W310 x D295 x H330 (mm) |
| Chamber capacity | 30L |
| Shelves | W252 x D297 x H8(mm) Standard 2 shelves / Max 3 shelves |
| Temp. Range | Ambient+5ºC ~ 50.0ºC |
| Temp. accuracy | ±0.1ºC |
| Temp. Uniformity | ±0.3ºC |
| Dry heat Sterilization | 60ºC to 140ºC |
| Dry heat Sterilization time | 0.5 ~ 10 hours |
| CO2 Sensor | Infra Red |
| CO2 range | 0 ~ 20% |
| CO2 accuracy | ±0.1ºC |
| O2 | N/A |
| O2 range | N/A |
| O2 accuracy | N/A |
| Humidity | 95%±0.4ºCRH by Natural evaporation |
| Weight | 36kg |
| Power | AC100/115/230V 50/60Hz |
SMA-30DRS
| External Dimensions W x D x H |
W415 x D486 x H546 (mm) |
|---|---|
| Chamber Dimensions W x D x H |
W310 x D295 x H330 (mm) |
| Chamber capacity | 30L |
| Shelves | W252 x D297 x H8(mm) Standard 2 shelves / Max 3 shelves |
| Temp. Range | Ambient+5ºC ~ 50.0ºC |
| Temp. accuracy | ±0.1ºC |
| Temp. Uniformity | ±0.3ºC |
| Dry heat Sterilization | 60ºC to 140ºC |
| Dry heat Sterilization time | 0.5 ~ 10 hours |
| CO2 Sensor | Infra Red |
| CO2 range | 0 ~ 20% |
| CO2 accuracy | ±0.1ºC |
| O2 | Galvanic battery |
| O2 range | 1% ~ 89% |
| O2 accuracy | ±0.5ºC |
| Humidity | 95%±0.4ºCRH by Natural evaporation |
| Weight | 36kg |
| Power | AC100/115/230V 50/60Hz |
