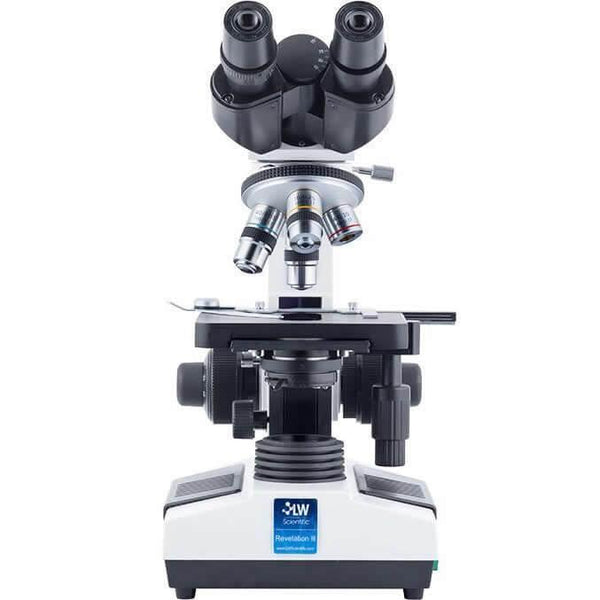

Revelation lll DIN, 4 Objective Microscope

Regular price $889.00

SKU: R3M-BN4A-DAL3
Packaging
Size

Revelation lll DIN, 4 Objective Microscope

The Revelation III is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. The Revelation lll comes with LED illumination, for daylight color, low heat, low power consumption, and super-long bulb life (30,000). Equipped for performance, its features include DIN achromatic or DIN Plan optics and a 30-year anti-fungal coating. The Revelation III is the choice for superior performance at a great value!

•Medical-Grade Microscope

•Anti-Fungal Coating on All Lenses

•Field-Ready Portable Options

Head

Binocular (Seidentopf) Inclined 30°, rotates 360° Diopter adjustment 10X/18 wide field eyepieces (10X/20HP available) Monocular, trinocular, dual binocular and 45° sliding heads available Interpupillary distance range: Binoc head: 48-75mm Trinoc head: 55-75mm

Nosepiece

Quadruple forward-facing nosepiece Multiple ball bearing mounted

Objectives

DIN Achromatic or DIN Plan 30 year anti-fungal coating 4X, 10X, 40X, 100XR (oil) Parfocal, parcentric, color-coded

Stage

Mechanical stage (140mm x 130mm) Coaxial drive controls Range of traverse is 78mm x 50mm Stage locking lever Slow-close hydraulic slide finger

Focus

Coarse adjustment: range of 30mm Fine adjustment: graduation of 2μm Tension control knob

Illumination

Moveable Abbe condenser, NA 1.25, rack & pinion Iris diaphragm 100-240V AC / 50-60Hz Auto-Switching Input Light Options: Variable halogen light source (12V/20W bulb) - Optional Variable LED light source (3W bulb) - Standard

Specifications

Product Manual

R3M-BN4A-DAL3

Binoc head, 4-10-40-100 DIN Achromatic objectives, LED illumination

R3M-TN4A-DAL3

Trinoc head, 4-10-40-100 DIN Achromatic objectives, LED illumination

R3M-BN4A-DPL3

Binoc head, 4-10-40-100 DIN Plan objectives, LED illumination

R3M-TN4A-DPL3

Trinoc head, 4-10-40-100 DIN Plan objectives, LED illumination
