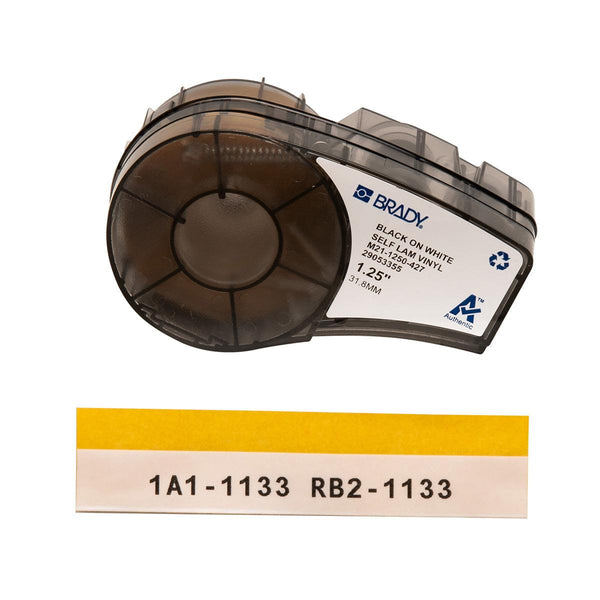

Self-Laminating Vinyl Wrap Around Labels with Ribbon for M21 Printers - 1.25"
$4,224.00 USD / 100.0 Unit
SKU: M21-1250-427(2pk)
Self-Laminating Vinyl Wrap Around Labels with Ribbon for M21 Printers - 1.25"

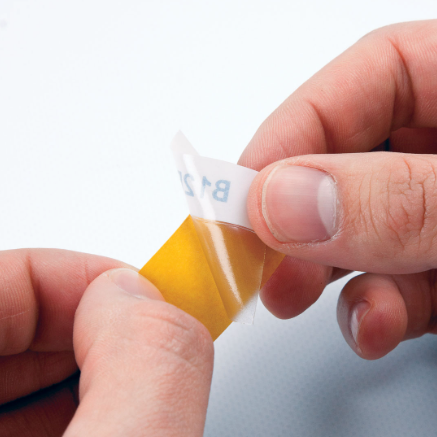

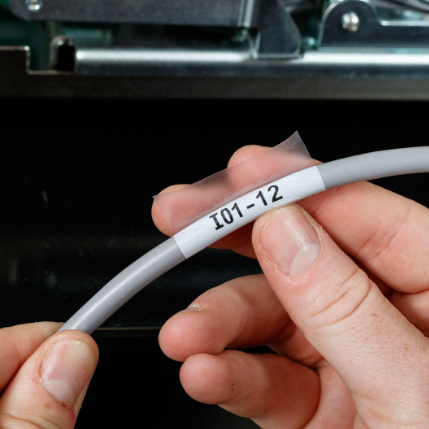

Brady’s self-laminating vinyl material is excellent for wire and cable identification. Designed with a clear protective layer to cover the printed text, B-427 material provides superb protection from abrasion, dirt, oils, solvents, water and excess handling.
- Excellent Adhesion – adheres well to surfaces that are smooth, rough or powder coated, and to irregular surfaces or surfaces with low surface energy
- Superior Protection – Abrasion resistant, Outdoor durable, Alcohol resistant, Fuel and Oil resistant, Self-extinguishing
- Printable area is 0.5 inches (12.7mm) and typically fits wires from 10 - 4 gauge.
- Certifications – UL Recognized to UL 2238, RoHS compliant to 2011/65/EU (Pass 2015/863)
- For material specific performance and properties, please refer to the Technical Data Sheet (TDS)

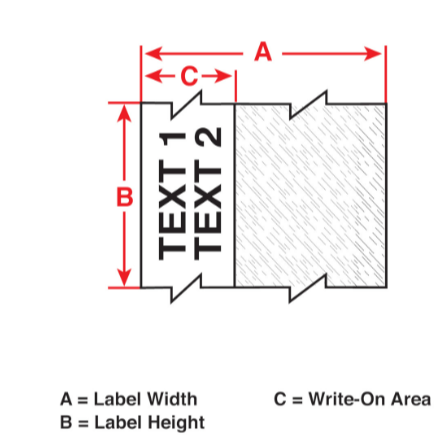

Dimensions:
| Label/Tape Size | 1.25 in W x 14 ft L |
| UOM | Cartridge of 14 Feet |
| Roll Length | 14 ft |
| Roll Width | 1.25 in |
| Printable Area Dimensions | 0.5 in W |
| Printable Area Width | 0.5 in |
| Thickness | 0.004 in |
| Vial/Tube Size | 4.0 - 50.0 mL |
Material Characteristics:
| Material Number | B-427 (View Technical Data Sheet) |
| Material | Self-laminating Vinyl |
| Material Properties | Flame-retardant, Self-laminating |
| Label Properties | Self Laminating & Wrap Around |
| Adhesive Type | Permanent Acrylic |
| Finish | Matte |
| Color | Clear, White |
| Ribbon Color | Black |
| Tape Color | Translucent/White |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Humidity-resistant, Oil-resistant, Smear-resistant, Water-resistant, Weather-resistant |
| Indoor or Outdoor Use | Outdoor Use |
| Service Temperature Range °F | -94 °F - 158 °F |
| Minimum Service Temperature °F | -94 °F |
| Minimum Service Temperature °F | -94 °F |
| Maximum Service Temperature °F | 158 °F |
| Reflective Type | Non-Reflective |
| PSPA Photoluminescence Class | Not Rated |
| Compatible Surface Types | General |
Product Features:
| Application | Data and Telecommunications Labeling, Electrical Labeling, General Identification, Wire and Cable Labeling |
| Average Outdoor Durability | Not Recommended |
| Label/Media Format | Label/Media in Cartridge with Ribbon |
Compatibility: Links to Compatible Printers below
| Printer Compatibility | BMP21-LAB, BMP21-PLUS, IDPAL, LABPAL, M210, M210-LAB, M211 |
| Wire Diameter Range | 0.126 in to 0.224 in |
| Wire Gauge Range | 12 AWG - 6 AWG |
Preprinted Information:
| Pre-Printed Areas on Label | Colored Write-On Area |
Links to compatible printers below:
SKU: M210-LAB - M210-LAB Portable Label Printer (Formerly Known as BMP21-Lab)
