MIRI® Multi-room Incubator [Quote]

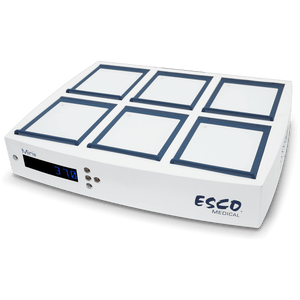

ESCO MIRI® Multi-room Incubator

The Esco MIRI® Benchtop Multi-room Incubator is designed to provide the best standard of care for your embryos or gametes during IVF.

The MIRI's overall design provides cultured embryos a minimum-stress environment. The 6-chamber format prevents cross-contamination while HEPA+VOC filtration cleans the airstream. The chambers are also independent of each other; hence, any disruption such as temperature drop when opening the lid will have no impact on the rest of the system.

One of the advantages of MIRI benchtop multi-room incubator is the speed of recovering temperature and gas parameters after opening a chamber. Say good-bye to stressors due to fluctuations in temperature and gas concentration.

Features

Built specifically to equip IVF laboratories and clinics to provide the best standards of care, it boasts a unique set of features that cannot be found elsewhere.

• 6 completely separate heating chambers for safe and secure handling of your embryos
• Total capacity of up to 48 standard culture dishes
• All chamber and lid temperatures are independently adjustable
• Direct heat transfer allows for <1 minute temperature recovery
• Heated Lid prevents condensation and enhances temperature regulation and recovery
• It can be connected to a PC for data logging.
• Separate CO2 and O2 regulation, expensive mixed gases not required!

All in all, the Esco MIRI Multi-Room CO2 Incubator is the perfect choice for routine embryo culture for any IVF clinic.

Brochure

Specifications

No. of compartments
6 completely separate heating chambers

Heating method
Direct heat transfer via heated bottom, also with heated lid and heating optimization plate

Total capacity

Heating plates customized for several types of dishes,
e.g. Falcon® or Nunc®
24 x IVF 4-well dishes
24 x Petri dishes Ø 60 mm
48 x Petri dishes Ø 35 mm

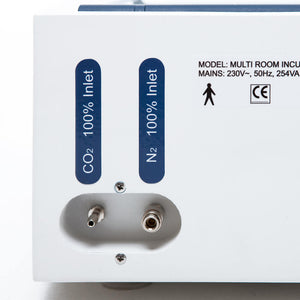

Input gas
100% CO2, 100% N2 (premixed gas NOT required)

Fast recovery
- 1 minute temperature recovery
- 3 minutes gas recovery

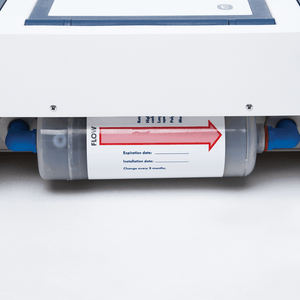

HEPA/VOC filtered airstream
- YES

UV sterilized airstream
- YES, optional

Data logging
- YES, optional via supplied software.
Parameters of the machine that can be viewed:

• temperature of all monitored temperature and gas concentration points
• gas input pressures
• gas flow rates
• current gas readings

Alarms
- YES, audible+visible, for out-of-range parameters: temperature, gas concentration, and gas pressure (can be
connected to external monitoring systems)

Stackable
- YES

Certified!
- IEC/EN 60601-1 3rd edition
- EU MDD Class IIa Medical Device

Cleared!
- FDA 510(k)
