VIP ECO SMART -86°C Freezer (25.7 cu.ft. | 729 L)
VIP ECO SMART -86°C Freezer
-
- Effective capacity
- 25.7 cu.ft. | 729 L
- Cooling Performance
- -40℃ to -86℃
SMART Control Ultra Efficient Ultra-Low Freezer
Independently tested and documented, the ENERGY STAR Certified VIP ECO SMART delivers the lowest daily energy usage (5.40 KWh per day) of any ultra-low temperature freezer in its class. The MDF-DU703VHA-PA (115V) is purpose-designed for the temperature uniformity and stability required for demanding life sciences applications. Variable speed inverter-driven compressors with proprietary SMART control algorithms allow for superior uniformity by running compressors at a slower speed under steady-state conditions.
Purpose-Built Cold Chain Storage
PHCbi brand ultra-low temperature (ULT) VIP® ECO SMART freezers are engineered from the inside out to create, maintain, and restore precise temperatures. Our purpose-built ultra-low temperature freezers are designed to achieve and maintain temperature uniformity and stability not commonly found with household or commercial cabinets.
PHCbi brand VIP ECO SMART ULT freezers provide reliable temperatures as low as -80°C . The VIP ECO SMART is part of the PHCbi brand VIP ECO Series of ultra-low temperature freezers. VIP ECO Series ULTs have earned a worldwide reputation for dependable performance in demanding environments where critical materials must be preserved for generations.
SMART Performance and Class-Leading Efficiency
From the inside out, VIP ECO freezers are designed for optimal storage and operation. Next-generation engineering harnesses the power of inverter compressor technology to yield greater temperature uniformity. Reserve refrigeration power delivers fast temperature recovery following door openings.
The PHCbi brand MDF-DU703VH-PA VIP ECO SMART is our most advanced ultra-low temperature freezer to date. The VIP ECO SMART uses 30% less energy than other leading ENERGY STAR® Certified freezers.1 The VIP ECO SMART combines next-generation engineering with SMART control technology to provide a ULT with industry-leading energy efficiency and enhanced security and operation. Proven frost mitigation technology lowers the total cost of ownership.
ENERGY STAR Certified
The MDF-DU703VHA-PA has earned ENERGY STAR Certification based on independent testing by third-party laboratories. The VIP ECO SMART delivers the lowest daily energy usage of any ultra-low temperature freezer in its class: 5.40 kWh per day. The VIP ECO SMART has less heat output, resulting in lower HVAC costs and an overall reduction in energy consumption compared to other ULTs of the same size.

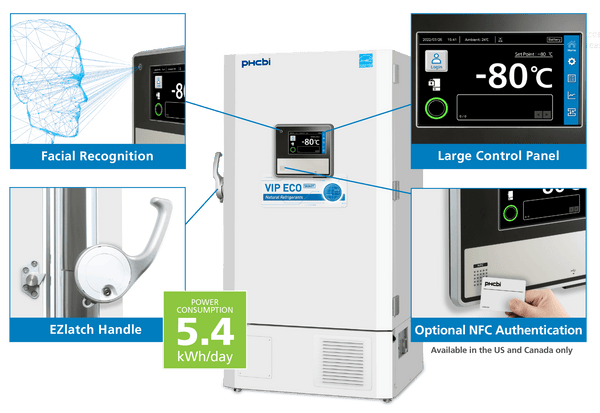

Security Control and Monitoring
The PHCbi brand VIP ECO SMART features integrated systems to secure your highly valued inventory. SMART features include three lock methods: facial recognition, keypad, or optional proximity card. Controlled freezer access monitors who has entered the ULT freezer and when and tracks total door opening duration.
Natural Refrigerants
The VIP ECO Series uses naturally recurring refrigerants to minimize environmental impact and allow for greater efficiency, resulting in less heat output and lower energy consumption.
EZlatch Ergonomic Door Closure with Integrated Lock
The VIP ECO SMART uses the EZlatch™ door closure for simplified, one-handed operation that maintains the integrity of the door seal. An integrated electronic lock on the VIP ECO SMART provides enhanced security.
The patent pending EZlatch is engineered to accommodate frequent door openings and to control frost associated with extreme temperature differentials in high humidity environments. The EZlatch is the centerpiece of a holistic access and frost mitigation system. This combination of product and process maintains the integrity of the door seal to ensure energy efficiency.
Specifications
ELECTRICAL 115V EXTERNAL DIMENSIONS 40.6" W x 34.7" D x 78.5" H (1030 x 882 x 1993 mm)* INTERNAL DIMENSIONS 34.3" W x 23.6" D x 55.1" H (870 x 600 x 1400 mm) EFFECTIVE CAPACITY 25.7 cu.ft. (729 L) INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches INSULATION Foamed-in-place and VIP Plus vacuum insulated panels: 3.1 in (80 mm) SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions:33.7" W x 21.0" D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf ACCESS PORT 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm) NET WEIGHT 608 lbs (276 kg) COMPRESSOR (2) 750 W, variable speed REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant TEMPERATURE CONTROL RANGE -40°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load) ALARMS High temperature, low temperature, power failure, sensor failure, filter alarm, door ajar, remote alarm, battery life COOLING PERFORMANCE -86°C center of chamber (ambient temperature 30°C, no load) TEMPERATURE CONTROL SYSTEM Microprocessor, touchscreen data entry, password protected AREA FOOTPRINT 9.78 ft2 (0.91 m2) SOUND LEVEL 52 dB(A) STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 576 STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 24 STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 384 STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 24 ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2404812 *Exterior dimensions of cabinet excluding handle, rear stand-off brackets and other external projections. Consult Doorway Instructions documentation below for doorway entry instructions, less than 36.8".Downloads
