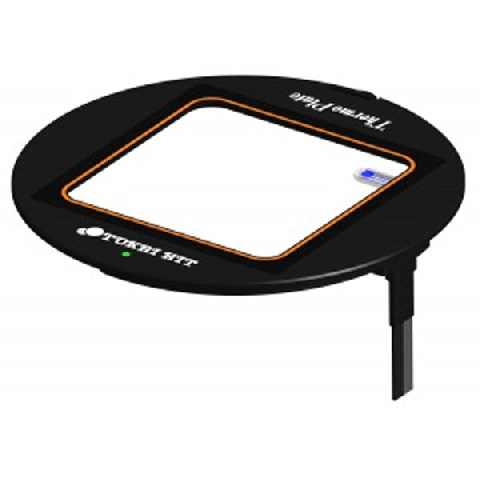

ThermoPlate TPi series Heated Glass Stage
Tokai Hit original glass heater maintains stable temperature and supports the needs in different various fields such as time-lapse imaging, ICSI and embryo biopsy in the IVF field.
Microscope: Olympus IX83/73/81/71/51/70/50, IMT2
Applicable stage: Cross stage with 110 mm round opening
Setting range: ambient – 60℃
Plate dimension: φ110
Heating area: W70 × D70
Glass thickness: 0.5 mm
Microscope: Nikon Ti2/Ti/TE2000
Applicable stage: Rectangular stage with 108 mm round opening
Setting range: ambient – 60℃
Plate dimension: φ108
Heating area: W70 × D70
Glass thickness: 0.5 mm
Features
・Strengthened glass with a 10 YEAR FREE REPAIR SERVICE for glass breakage
・Plate LED Indicator visualizing the plate condition
・No problem with contrast in DIC observation
・Compact controller for space saving
・On-site calibration by simple operation
・Temperature sensor and logging software for quality control
Components
Heating Plate, TPi Controller, Mounting Hook, Power Code, AC Adapter, Temperature Sensor, Extension Wire, TEM Install CD & USB Cable
