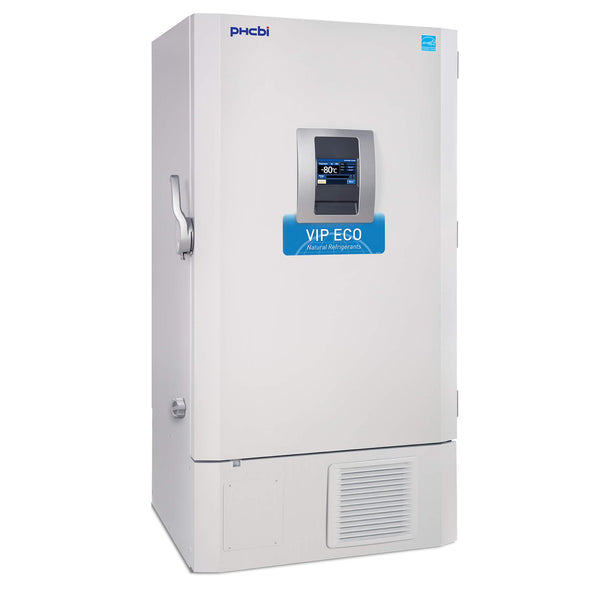

VIP ECO Natural Refrigerant -86°C Freezer (25.7 cu.ft. | 729 L)
VIP ECO SMART -86°C Freezer
-
-
- Effective capacity
- 25.7 cu.ft. | 729 L
- Cooling Performance
- Down to -86℃
VIP ECO Series
The VIP ECO Series ultra-low temperature freezers represent an advance in refrigeration technology and cabinet design required to minimize energy consumption while maintaining a safe, uniform and stable ultra-low environment for life forms. Together with new refrigeration platform based on variable speed inverter compressors and sophisticated control algorithms, the VIP ECO freezer successfully uses of natural refrigerants essential to global sustainability without compromising cooling performance.
These freezers are available in two upright cabinet sizes and in both 115V and 220V electrical models. All VIP ECO freezers include Advanced Frost Control and an EZLatch door design ultimately essential to better energy efficiency in real-world conditions.
Performance and Reliability
Reliable Cooling and Temperature Performance
The robust refrigeration system provides dependable cooling and temperature performance through the PHC engineered heat transfer components and time tested natural refrigerants. Reserve refrigeration power assures exceptionally fast temperature recovery following door openings. Performance and reliability are never compromised when it comes to storing your valued samples.
Energy Efficient, Balanced Power
Smart compressors, natural refrigerants and integrated electronics combine to lower your facility’s operating costs. Freezer operation is managed by the practical balance of temperature performance and energy management.
Cascade Reliability
The PHCbi cascade refrigeration platform is based on high-performance compressors designed by PHC specifically for ultra-low temperature applications. The PHCbi cascade system is used on VIP Series upright freezers for temperature storage preferences within a range of -50°C to -86°C. These ULT lab freezers use two compressors in a cascade sequence. Both systems work together, running on uniquely designed refrigeration compressors designed to cool themselves as they operate to achieve ultra-low temperatures.
Ergonomic Design
Opening the door of an ultra-low temperature freezer is not an insignificant event. Due to extreme temperature differentials, users should know the location of stored product inside the freezer to minimize the duration of the door opening. Best practices lead to better chamber uniformity, faster recovery of setpoint temperature and overall longer freezer life as a result of reduced strain.
The PHCbi Advanced Frost Control System
The Advanced Frost Control System is a combination of nine individually engineered components, designed to work together to minimize frost, protect contents and extend freezer life.
The PHCbi Advanced Frost Control System is standard on VIP ECO and TwinGuard freezers.
1. The Outer Door
The outer door is insulated and mounted on heavy duty oval fastened hinges to permit adjustment throughout the life of the freeer.
2. EZlatch Door Handle
The patent pending PHCbi door handle spans an arc of 45 degrees in total movement for easy operation. The EZlatch is included as a standard feature on the PHCbi VIP ECO -86°C / -80°C Laboratory Freezer Series.
3. Security
The EZlatch includes an integral lock and a provision for a secondary padlock to restrict access.
4. Mullion Heater
Refrigeration system heat output is diverted to the non-temperature conduction extrusion to resist heat moisture accumulation which can cause frost and ice build-up.
5. Air Space
The outer door design minimizes trapped ambient air between the outer door and inner doors.
6. Inner Doors
Insulated inner doors with gaskets minimize cold air loss during door openings.
7. Heat Breaks
To minimize frost and protect the cabinet seal, all materials at the door/cabinet interface are engineered to reduce passive heat transmission from the outside to the inside and to diminish cold surfaces in contact with moist, ambient air.
8. Removable Gaskets
Multi-point door gaskets create micro air breaks around the face of the cabinet, restricting moisture migration into the cabinet and minimizing frost. Gasket composition withstands extreme relative temperature differentials while remaining flexible, ensuring a full peripheral door seal. The outer door gasket can be easily removed and replaced without tools while the freezer can remain in operation with no downtime.
9. Vacuum Relief
The automatic vacuum relief port equalizes pressure and permits the outer door to be opened easily for quick re-entry.
Specifications
ELECTRICAL 115V EXTERNAL DIMENSIONS 40.6" W x 36.8" D x 78.5" H (1030 x 935 x 1993 mm)* INTERNAL DIMENSIONS 34.3" W x 23.6" D x 55.1" H (870 x 600 x 1400 mm) EFFECTIVE CAPACITY 25.7 cu.ft. (729 L) INTERNAL DOORS 2 insulated; ABS, with stainless steel frames and positive latches INSULATION Foamed-in-place and VIP Plus vacuum insulated panels: 3.1 in (80 mm) SHELVES Stainless steel, 3 shelves (adjustable); Inner dimensions:33.6" W x 21.0" D (855 x 534 mm); Load: 110 lbs (50 kg) per shelf ACCESS PORT 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm) NET WEIGHT 613 lbs (278 kg) COMPRESSOR (2) 750 W, variable speed EVAPORATOR Tube on sheet type REFRIGERANT High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant TEMPERATURE CONTROL RANGE -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load) ALARMS High temperature, low temperature, power failure, sensor failure, filter alarm, door ajar, remote alarm, battery life COOLING PERFORMANCE -86°C center of chamber (ambient temperature 30°C, no load) TEMPERATURE CONTROL SYSTEM Microprocessor, touchscreen data entry, password protected AREA FOOTPRINT 9.78 ft2 (0.91 m2) DATA MANAGEMENT Optional with LabAlert Monitoring System SOUND LEVEL 46 dB(A) (background noise 20 dB(A)) STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES 576 STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES 24 STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES 384 STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES 24 ENERGY STAR CERTIFIED ENERGY STAR Unique ID 2330320 *Exterior dimensions of cabinet excluding handle, rear stand-off brackets and other external projections. Consult Doorway Instructions documentation below for doorway entry instructions, less than 36.8".Technical & Educational Resources
-
