IVF On Demand OnLine Filter

Regular price $104.99

SKU: IOF-100-1F
Packaging

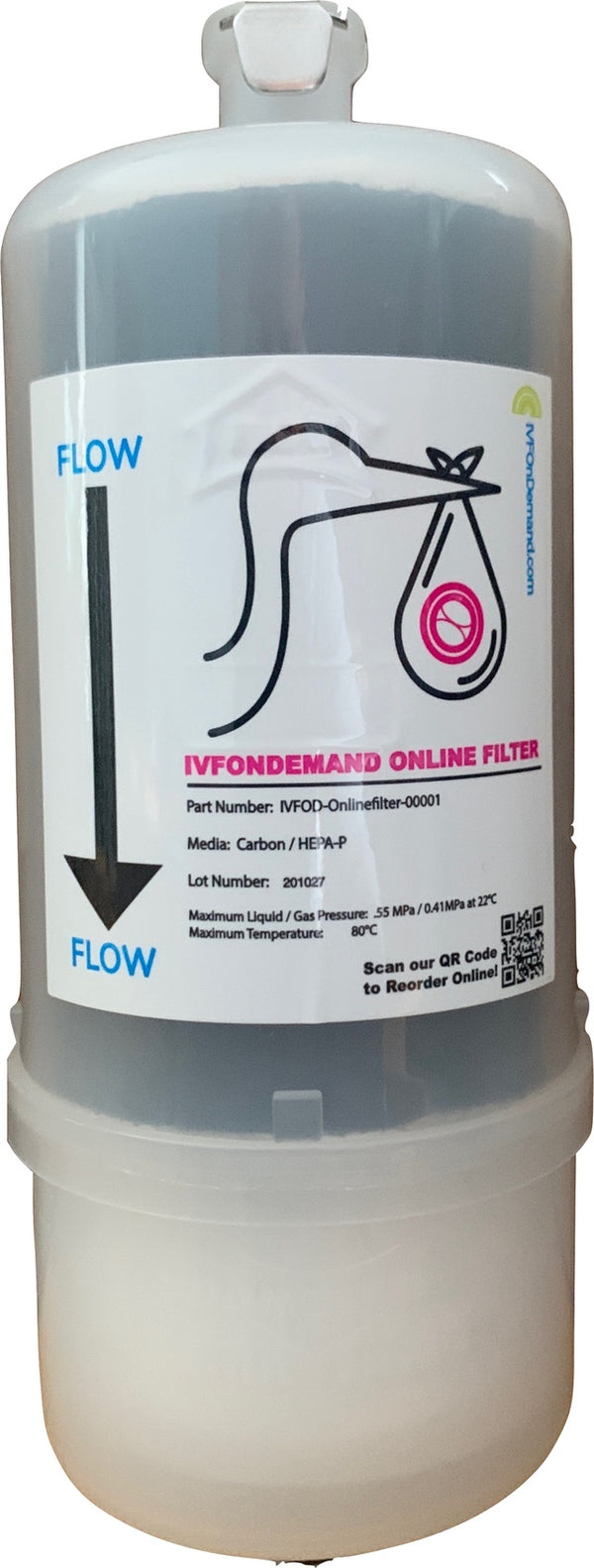

IVF On Demand OnLine Filter

The IVF On Demand OnLine Filter Provides protection for 6 months.

Filter Specifications and Certifications

  • Purifies CO2 and N2 gasses
  • VOC Capacity: 1400 (mg) tested with Isopropyl Alcohol, ethanol, methanol, acetone, Toluene, Xylenes, 2-butanone, styrene acrolein, benzene, ethyl acetate, 111-trichloroethane, n-Hexane, Methylene chloride, propionaldehyde, butyraldehyde, hexanaldehyde
  • 2 filters: Activated carbon and HEPA (1 Micron)
  • Fitting connections: Male/Female :1/4” Flow cut-off valve quick coupling with metal latch (2QV/2QV)
  • Sterilized
  • Regulatory: Certified by CE class 1, meets 93/42/EEC Medical Device Standards
  • Constructed with polypropylene resins and filtration media with 21 CFR Part 177 and USP Class VI biological test for plastic.
  • Maximum operating conditions: 60 o C (140oF), 5.5 bar (80 psi)

Main application and target market

  • Purifies CO2 and N2 gasses
  • Market: Medical
    Materials of Construction:
    (Standard Construction)
    Media: Fibrous Activated Carbon and HEPA media
    Media Supports: Polypropylene
    Cage, Core, End Caps: Polypropylene, Silicone, Thermal End Cap
    Fitting Connections: Male/Female : 1/4” Flow cut-off valve quick coupling with metal latch (2QV/2QV)
    Nominal Dimension: Length: 1.5” (38 mm), 2.5” (63 mm), 5” (127 mm), 7.5” (190 mm), and 10” (254 mm)
    Diameter: 2.8” (73 mm)
    Effective Purification Volume:
    (Single Layer/PP Construction)

    1.5”: 0.65 grams
    2.5”: 1.3 grams
    5.0”: 2.7 grams
    7.5”: 4.0 grams
    10”: 5.2 grams

    Operating Conditions:

    Maximum Operating Pressure: Liquid: 5.5 bar (80 psi) at 72 °F/22 °C

    Gas: 4.1 bar (60 psi) at 72 °F/22 °C

    Maximum Forward Differential Pressure: 4.1 bar (60 psi) at 72 °F/22 °C

    Maximum Reverse Differential Pressure: 2.1 bar (30 psi) at 72 °F/22 °C

    Minimum Burst Pressure: 8.3 bar (120 psi) at 72 °F/22 °C

    Maximum Operating Temperature: 140°F/60°C
