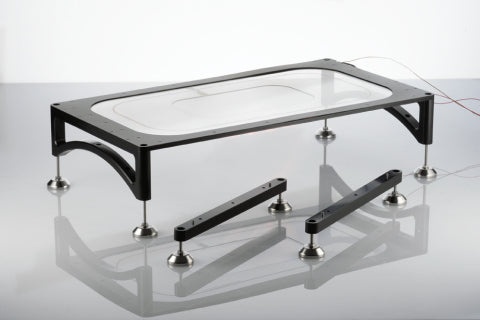

Microscope Surface Heating Devices - Glass Table
H601-K-FRAME-GLASS-FLAT
The ITO glass table realizes a flat and transparent surface at controlled temperature. Ideal for stereo microscopes.
It requires H401-T-CONTROLLER or H401-T-PENNY.
Features
- T range: ambient to 60°C
- T sensor accuracy: ±0.1°C
- T accuracy on specimen: ±0.3°C, after self calibration, if room temperature remains within ±1°C
- 4.3'' touch screen interface
- On-board data logging and download routines to USB drive
- Plate calibration can be performed in the lab by the operator
- Glass thickness: 2 mm

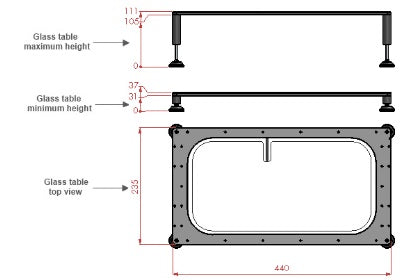

- Adjustable height:
- from 31 to 37 mm
- from 75 to 105 mm
