Professional Pt100 4-wire high precision thermometer
PRO 111 1-channel temperature meter for Pt100 4 wire probes, M12 socket 4-pole, graphic display. Supplied in carton box, with 4 x AA alkaline batteries, QuickStart, test-protocol.
PRO 115 1-channel temperature meter/data logger for Pt100 4 wire probes, M12 socket 4-pole, graphic display. Supplied with 4 x AA alkaline batteries, QuickStart, test-protocol, USB cable. Free Software ProXware downloadable from Senseca website.
Features:
Display

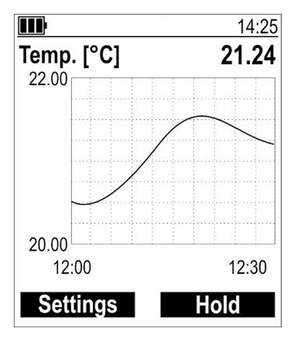

- Backlit, multilingual, clear text LCD has ergonomic wide-angle visibility from daylight to darkness. It displays values, statistical data, and measurement history over time in a chart.The HOLD feature freezes the measurements on display, while the REL feature allows for comparison against another temperature point.
- °C, °F and K units of measurement easily selectable.
- The meter can also display the corresponding electrical resistance of the pt100 probe alongside the temperature
Data Logging (only PRO 115)
- Stores up to 1 million data sets, file system based.
- The logged data is stored in CSV files that are easily transferred and viewed on a PC.
- The instrument is seen by the PC as a mass storage device, the data can be read and evaluated without software.
- Automatically log data to a configurable time interval.
- A real time clock stamps the date and time for each stored value.
Alarm
- Configurable alarm thresholds and optionally hysteresis can be set.
- LC display indication and buzzer activation when thresholds are exceeded.
Configuration & Measurement
Probes

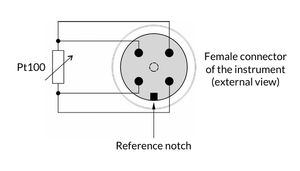

- Compatible with any 4-wire Pt100 probe with an M12 connector. The high-precision temperature-compensated analog front-end of the meter does not add any significant error to the measurement chain, making it a low-cost high-class reference system. Polynomial sensor linearization gets the best out of your Pt100 temperature probe and provides all relevant possibilities for calibration and adjustment.
Connection to PC
- Via the USB C port, for viewing or downloading the files stored in the instrument internal memory (only PRO 115) or connecting to the application software ProXware.
- Connect via the USB cable and query the meter with serial commands.
Statistics
- Detection of MIN, AVG (average) and MAX. The user can clear the statistical info to start a new statistical calculation.
Key Specifications:
| Measuring Range | -200.00…+850.00 °C / -328.00…+1562.00 °F |
| Resolution | 0.01 °C/°F |
| Accuracy | ±0.05 °C or ±0.06% of measured value (whichever is higher) ± 1 digit |
| Sampling Rate | 2 measurements per second |
| Probe length | Less than or equal to 10 meters |
| Input Channels | 1 channel for 4-wire Pt100 probes with M12 connector |
| Logging interval (PRO 115 only) | 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30 min / 1 h |
| PC Connection | USB-C, Mass Storage Device (only PRO 115) | Serial communication to query the meter via USB |

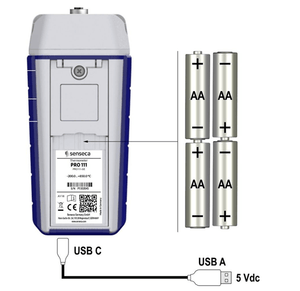

| Power Supply | 4 x AA alkaline batteries | External 5 Vdc via USB C |
| Battery Life | 150 hours continuous operation with backlight off. (auto power off is user configurable.) |
Precision analog 4-wire Pt100 probe
• Interchangeable with good accuracy
• Fast
• Pt100 platinum probe for 4-wire reference Instruments (e.g. PRO 115)
• Ergonomic handle with high operating temperature up to 120 °C
• Robust for many years of professional use
• Easy to clean
• Water-protected according to IP67
The AX 111 are precision analog Pt100 temperature probes based on thin film sensor technology. The AX 115 are high precision analog immersion probes incorporating wire wound Pt100 sensors for best precision.
The probes are designed for use in gases, liquids and soft materials.
Stem material is corrosion and temperature resistant stainless steel., which is suitable for continuous food contact.
The standard 1 meter cable is optionally terminated with M12 male connector, Mini-DIN or loose ends.
The probes can be optionally supplied with ISO 9001 or DAkkS-/ACCREDIA accredited calibration ISO/IEC 17025 when combined to a suitable display instrument (e.g. PRO 111 / 115 Pt 100 Thermometer).
